| Negotiable | 1 Set (MOQ) |
| FRP MG-26 4T Rebar Pultrusion Machine The machine includes: | |||
| Items | Description | Qty | Technical Data |
| 1 | Roving creels | 2pcs | Ivory paint, combined structure, easy accessibility Rolls capacity: 70-100 5 layers Dimension: 2000mm(L)x600mm(W)x2000mm(H) |
| 2 | Resin bath | 1pc | Capacity: 50kg Bath dimension: 1030mm(L)x720mm(W)x190mm(H) Dimension: 1110mm(L)x810mm(W)x900mm(H) |
| 3 | Heating oven Winding and unwinding device | 1pc | Number of winding head: 2 Center distance between winding heads: 411mm Winding power: 0.75KW Winding rotation speed: 9-95rpm Heating oven power: 10x2.4KW Number of temperature control zones: 1+2x5 (optional) Unwinding mode: frequency control motor Dimension: 6000mm(L)x1140mm(W)x1380mm(H) |

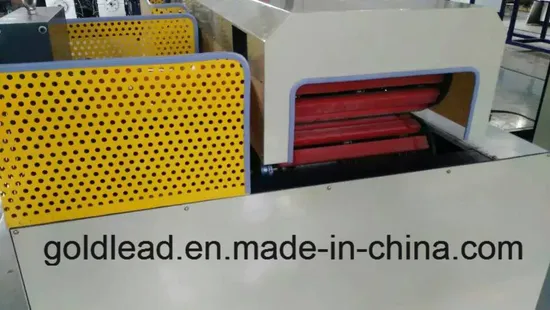

| 4 | Traction machine | 1pc | Power: 380V/50HZ 1.1KW Max traction force: 40KN Traction speed: 0.1m-1.0m/min Clamping length: 1200mm Clamping width: 500mm Clamping rubber length: 215mm Clamping mode: caterpillar type Dimension: 2100mm(L)x1300mm(W)x1450mm(H) |
| 5 | Cutter | 1pc | Cutting range: 200mm(W)x85m(H) Rotation speed of cutting blade: 2850rpm Cutting power: 380V/50HZ 1.5KW Diameter of cutting blade: ∮400mm/∮50mm (inner) Dust collection: vacuum cleaner 1.5KW Cutting tracing journey: 700mm Cutting mode: auto/manual Fix-length cutting mode: limit switch Dimension: 1850mm(L)x1250mm(W)x1510mm(H) |
| 6 | Creel for finished products | 1pc | Structure: square tube and steel plate welded Standard configuration: platform type Dimension: 6000mm(L)x550mm(W)x900mm(H) |
| Control system | PLC: FX1N-14 , Mitsubishi, Japan Converter: Mitsubishi FR-E740-1.5KW, Japan Temperature controller: AISET, Shanghai, N6000 Electrical components: Huyu, Zhejiang | ||
