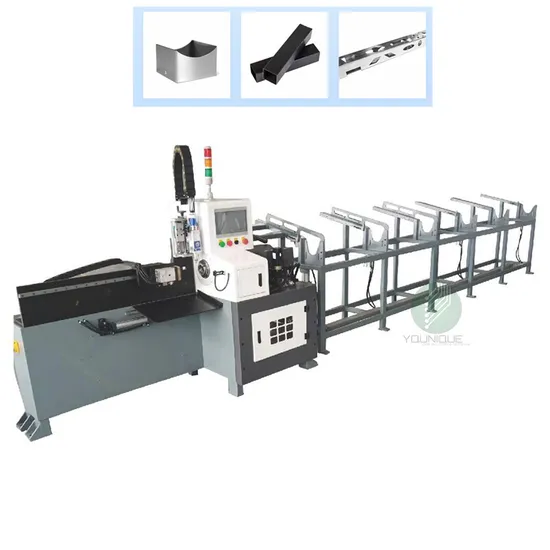

| Automatic laser pipe cutting machine |
| Model | YE-K-40 |
| Machine tool basic configuration |
| Control type | PLC |
| Laser emitter power | 1500kw |
| Working accuracy | ± 1mm |
| maximum machining diameter | 40mm |
| maximum gate power machining length | 900mm |
| Laser head drive | servo |
| Cutting wall thickness | 0.3-2mm |
| Spindle speed series | infinite speed change |
| Feeding mode | fully automatic |
| range of application | Round pipe cutting |
| Cooling method | water cooling machine |
| Feeding mode | roller |
| locate mode | servo |
| Power type | Mechanical transmission |
| Clamping mode | pneumatic |
| Cutting Mode | optical fiber |
| Machine tool rack(length * width * height) | 1950mm*1200mm*1300mm |
| Machine weight | about 900 kg |
