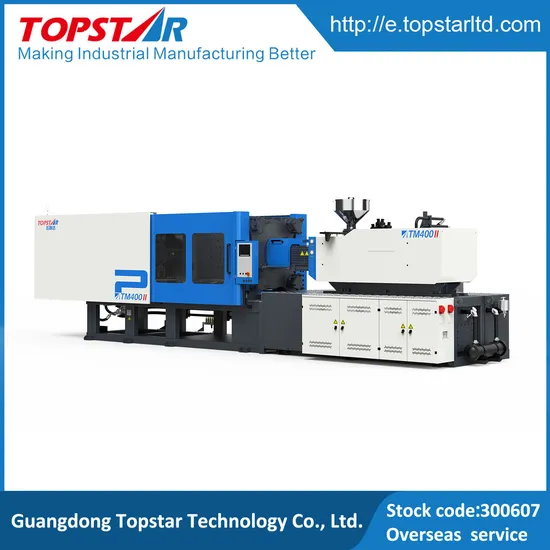

Factory Supplier TM400II Plastic Injection Making Molding Machine for Battery Housing

Product Description

Topstar 90-470Ton Horizontal Injection Molding Machine for Households Plastic Products

Product Description:
The TM II series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Strong engine, efficiency increase.
2. Configuration promoted, stable to use.
3. Optimized design, energy saving and reliable.
4. Highly integrated, accurate and efficient.
Accessory Introduction:
1. Standard KEBA controller, PHASE motor, DELTA drive, with self-developed control program, more precise production control.
2. Standard configuration of plating screw and temperature control of the offload, higher production efficiency, and wider application range of rubber materials.
3. Optimized clamping design, higher strength and more stable.
4. Diagonal double carriage cylinders and linear guide, more accurate and stable injection.
5. Pre-plasticizing adopts proportional back pressure control, easy to operate. Multi-stage back pressure setting can be realized, with higher precision and improved plasticization quality.
6. Precision PVD alloy screw head set, adapt to a wider range of plasticizing requirements.
Parameter Table:

INJECTION UNIT	UNITS	TM400II
Screw Diamete	mm	65	70	75
Screw L/D Ratio	L/D	21.5	20.0	18.7
Screw Stroke	mm	320	320	320
Shot Volume	cm3	1062	1232	1414
Shot Weight(ps)	g	966	1121	1286
	oz	34.0	39.4	45.3
Injection Pressure	kgf/cm3	2085	1798	1566
Injection Rate	cm3/s	388	388	517
Injection Rate	mm/s	117	117	117
Screw Speed	rpm	180
Nozzle Contact Force	t	9.1
Nozzle Stroke	mm	450
CLAMPING UNIT	UNITS	TM400II
Clamping Force	t	400
Opening Stroke	mm	720
Platen size(H×V)	mm	1045*1045
Space Between Tie Bars(H×V)	mm	730*730
Mlould Thickness (Min)	mm	250
Mlould Thickness (Max)	mm	750
Max. Daylight	mm	1470
Ejector Force	t	11.0
Ejector Stroke	mm	220
Locating Ring	mm	160
POWER/HEATING UNIT	UNITS	TM400II
System Pressure	kgf/cm3	175
Pump Power	kw	52
Heating Power	kw	23.4
Number of Temp Control Zones	-	5+1
OTHERS	UNITS	TM400II
Machine Dimensions(LxWxH)	m	7.92*1.92*2.24
Oil Tank Capacity	L	450
Machine Weight	t	14.8
Platen Dimensions
Platen Dimensions

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.

---
