Water Hyacinth Harvesting, Water Peanut Salvage, and Blue-Green Algae Salvage Choose Aquatic Weed Harvester

Product Description

Product Description
The construction of a large fully automatic cleaning ship adopts a three bar design, corresponding to the front collection compartment, middle storage compartment, and rear storage and unloading compartment. A large operation room is built above the middle storage compartment, which is equipped with an integrated operation platform. The captain can control the entire ship for construction from inside. During construction, our cleaning ship uses a hydraulic system to control the hydraulic cylinder to lower the front collection compartment below the water surface. The bottom shear at the front end starts working under the drive of the hydraulic motor. Its main function is to cut the roots of the water grass. There are two circular saw blades on both sides of our collection compartment, which rotate quickly under the drive of the hydraulic motor. The sharp saw blades are the key to cutting horizontally growing water grass. Not only can it quickly cut off the branches and vines, but it can also clear the path for our cleaning boat to move forward, The saw blade and bottom shear cooperate to carry out the first step of cutting and collecting work. Next to the bottom shear is the collection chain in the front compartment. Driven by the motor, the collection chain starts to rotate and transports the already cut water grass to the storage compartment to complete the collection work. When the water grass or floating objects fill the middle and rear compartments with materials, our ship can sail to the shore for unloading. When unloading, the hydraulic system drives the oil cylinder to lift the rear unloading compartment high, and the chain in the rear compartment starts to run quickly to unload the water grass or floating objects to the shore. This completes the work, and our cleaning boat is then driven back to the construction site for cyclic construction.

Size after assembly	17m*5.5m*4.1m
Full load draft	1.0m
Cutting width	2.1m
Cutting depth	1.2m
Hopper capacity	16CBM
Driven mode	Wheel
Driven speed	4~5km/h
Continuous working time	16h
Engine power	115KW(WEICHAI)

Detailed Photos
The large fully automatic cleaning boat has powerful functions and complete supporting facilities. It not only comes with standard bottom shears and saw blades, but also selects other functional components according to the growth of water plants on site, such as collecting rakes, vertical shears, crushing knives, mechanical swing arms, wheel blades, and so on.
A large fully automatic cleaning ship not only has a large capacity, with a capacity of over 20 cubic meters per ship, but also has a large construction area and high construction efficiency.

Product Parameters
The medium-sized fully automatic cleaning boat has powerful functions and complete supporting facilities. It not only comes with standard bottom shears, but also selects other functional components according to the growth of water plants on site, such as saw blades, collection rakes, vertical shears, crushing knives, mechanical swing arms, wheel blades, and so on.

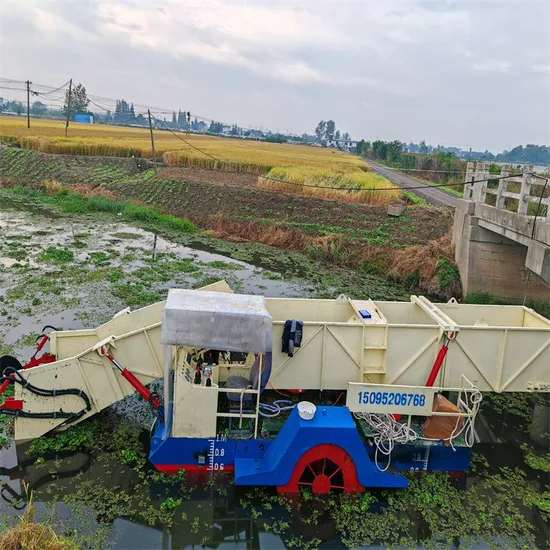

During the construction of a small semi-automatic cleaning boat, the hydraulic system controls the hydraulic cylinder to lower the front collection compartment below the water surface. The bottom shear at the forefront starts working under the drive of the hydraulic motor. Its main function is to cut off the roots of the water, and next to the bottom shear is the collection chain in the front compartment. Under the drive of the motor, the collection chain starts to rotate, transferring the already cut water grass to the deck. After the deck is full, we drive the boat to the shore and manually unload the water grass or floating objects to the shore. This completes the work, and our cleaning boat is then driven back to the construction site for cyclic construction.
The mini semi-automatic cleaning ship is simple in structure, convenient in transportation and installation. The hull uses foam as the main body of construction, with low cost. The equipment is driven by batteries. This cleaning ship also has low operating costs in the later period, which is very economical. It is very suitable for the terrain with simple water and grass on the water surface. The front collection tank uses a combination of bottom shear and vertical shear, which is sufficient for small water area construction.
The crushing cleaning boat is compact and can be operated by one person sitting on the boat. The front end is equipped with a crushing knife. When our equipment is working, the captain controls and starts the hydraulic system. Under the drive of the motor, the crushing knife rotates quickly. Due to the sharpness of the crushing knife itself, coupled with the centrifugal force generated by the rapid rotation, the crushing cleaning boat breaks it into pieces and floats on the water surface when it comes into contact with water hyacinths and other aquatic plants. It can also easily cut and disintegrate horizontally growing branches. At the tail of the boat, there is a propeller thruster that can move forward and backward quickly. A skilled captain can combine the two organically for better construction results.
The bucket type cleaning boat is composed of a hull, a bucket, a mechanical arm, a hydraulic system, a control panel, a walking system, and a power system. When the equipment is working, the diesel engine provides power to drive the hydraulic system to work. Under the drive of the hydraulic cylinder, our mechanical arm can be lifted and lowered, and the bucket can flip at a certain angle. The equipment can be used for construction in the water. The skilled captain can control the boat to load floating objects on the water into our bucket, and then lift the arm high to discharge them to the transport ship or the shore. The tail of the boat is equipped with double screw propulsion, which can quickly achieve the forward, backward, and turning of the boat. It is very suitable for teaching a lot of floating garbage and teaching chaotic water surfaces.

Certifications
Packaging & Shipping
Aquatic weed harvester are small equipment that are transported to the customer's site in containers.We will split the prepared aquatic weed harvester and transport it to the customer's designated site for assembly by technicians.
Installation Instructions
1. When the aquatic weed harvester arrives at the customer's site, our technicians will go to the site to guide installation
2. We will provide all the installation tools, and only need to cooperate with lifting and personnel on site
3. The installation cycle is about 5-7 days
4. After installation, we will provide training to on-site personnel on how to use a aquatic weed harvester
Company Profile
Shandong Yongsheng Dredging Machinery Co., Ltd. is located in Qingzhou City, Shandong Province, convenient transportation, is a custom, manufacturing dredger, dredging ship, pumping sand boat, mowing boat, cleaning ship, sand making machine, sand washing machine and a complete set of accessories manufacturers, products sold throughout the country, welcomed and trusted by the majority of users.
Our company has been producing Aquatic weed harvester since 2005, and it is currently the fifth generation upgrade with mature technology. Welcome to visit and exchange ideas with the company!

---
