Plastic Pet Garden Spray Bottles10L 20L 30L Plastic Container HDPE PE PP Drum Jerrycan Oil Bottle Extrusion Blow Molding Jwell Machinery

Product Description

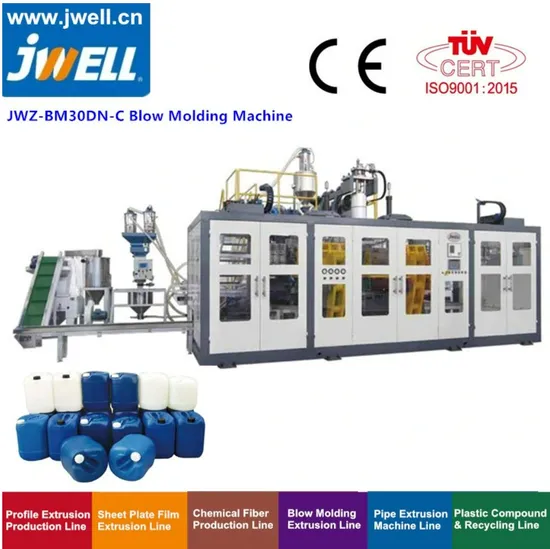

JWELL 5L 12L 20L 30L Double Station Multi -Cavity Multi-Layer Blow Molding Machine
Product Description
1.Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
2.Optional multi-layer co-extrusion.
3.Optional view strip line system.
4.According to the product size,select different cavity of die head.
5.According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
6.According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.
Technical parameters

Model Unit	BM05D	BBM12D	BM20D
Max product volume L	5	112	20
Dry cycle Pc/h	700*2	6600*2	600*2
Die head structure		Continuous type
Main screw diameter mm	75	990	90
Max plasticizing capacity (PE) kg/h	90	160	160
Driving motor Kw	30	445	45
Oil pump motor power(Servo) Kw	15	18.5	18.5
Clamping force KN	70	120	160
Space between platen mm	150-510	2240-640	280-680
Platen size W*H mm	420*390	5520*490	500*520
Max.mould size mm	420*400	540*500	560*520
Platen moving stroke mm	450/520	6600/650	650
Heating power of die head Kw	7.5	110	12.5
Machine dimension L*W*H m	3.7*3.1*2.7	4.2*3.2*3.0	4.3*3.2*3.1
Machine weight T	8.5	112	14
Total power Kw	60	990	93

Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.

Model	Unit	BM160	BM230
Max product volume	L	160	230
Dry cycle	Pc/h	300	280
Die head structure	Accumulating type
Main screw diameter	mm	100	120
Max plasticizing capacity (PE)	kg/h	240	350
Driving motor	Kw	90	132
Accumulating volume	L	18	24
Oil pump motor power(Servo)	Kw	30	37
Clamping force	KN	800	900
Space between platen	mm	500-1400	800-1800
Platen size W*H	mm	1120*1200	1320*1600
Max.mould size	mm	900*1450	1200*1800
Heating power of die head	Kw	30	36
Machine dimension L*W*H	m	7*3.5*4	8.2*3.5*5.5
Machine weight	T	20	36
Total power	Kw	172	230

FAQ PART TWO:
Q1. Is Jwell Machinery a Manufacturer?
A1: Yes, all key components of the extrusion line are made by JWELL.
We own 8 manufacturing bases and sales center in Shanghai, Haining ,Suzhou, Changzhou, Zhou Shan, Chuzhou, Foshan,Quanjiao China.
Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo. After more than 40 years development,
JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.
Q2: How many brands does Jwell Machinery own?
JWELL: Jwell Machinery owns more than 20 subsidiaries, China famous brand JINHAILUO, JWELL, BKWELL, DYUN
Are our Trade Marks.
Q3: If we don't find what we need from your website, What should we do? Do you make extrusion lines as per
Customers' specific requirement?
JWELL: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed
Requirements by email. We will check if we can develop them. We develop new machinery every month, and
Some of them may not yet be updated on our website.
Q4: How do you ensure your machinery and service quality?
JWELL: Our machines taking the European standards and follow the Germany type of business, we cooperation with
International famous brands Siemens Sneider Flender Omron ABB WEG Falk FUJI etc. Our company continuously
Imports over 1000 international first-class high precision processing equipment such as multistage machining centers,
CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
IS09001 and 2008 quality management system. And we have 12 months quality warranty time. We testing the
Machine performances before each delivery. Jwell service engineers will always be here for anything you needed.
Q5: How can I order and make payments?
JWELL: Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.
Q6: If we find your bank account or email different as before, how should we respond?
JWELL: Please don't send the payment and double check with us before arrange payment (Bank details will be listed in
Every piece of proforma invoice. ) " ".
Q7: How long is the delivery date?
JWELL: Usually it takes about 1 - 4 months depends on different machinery upon receipt of order advance payment.
Q8: What is your Minimum Order Quantity?
JWELL: One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
Innovation or improvements for your future purchasing plan.
Q9: What is your production capacity?
JWELL: We produce more than 2000 advanced extrusion lines every year world wide.
A10: What about shipping?
JWELL: We can send the small spare parts by air express for urgent matter. And the complete production line by sea
To save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
Port is China Shanghai, Ningbo port, which is convenient for maritime transportation...
Q11: Is there any pre-after sale service?
JWELL: Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
Engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
Operation and maintenance service for a life time.
Q12: Are our business& money safe with Jwell Machinery?
JWELL: Yes, your business is safe and your money is safe. If you check China company blacklist, you will see that it is
Not contain our name as we never crook our customer before.
Please click "send" and Contact us! ! Jwell Machinery Co., Ltd. Add: Haining, Changzhou, Suzhou, Dongguan, Zhoushan, Shanghai of China. Contact: Ms.Lillian Lee Jwell

---
