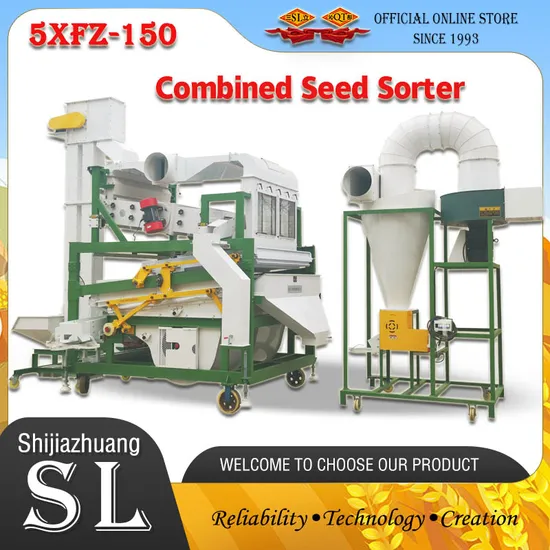

Combination Pre-Cleaning Machine with Density Sorter Large Capacity for Maize Corn Seed

Product Description

What's this machine can do?
It can effectively remove light impurities by air aspiration, impurities with light bulk density by gravity table, impurities with large and small size by vibration screen.
Light impurities: mainly including grain skin, grain husk, somestraw and dust, etc.
Bad seeds: mainly including moth eaten, mildew, pathological changes, underdeveloped, poor grain and other bad seeds. Also some straw objects.
Large impurities: mainly including impurities whose overall dimension is larger than that of rice seeds, such as some larger straws, soil blocks, etc.
Small impurities: small rods, broken seed, sand and other small impurities.
The 5XFZ-150 Series combination seed cleaner is suitable for processing various crops and all granular materials. Especially for sesame seed, beans, wheat, paddy and other crops with small bulk density, the effect is better.
Flow Diagram
Detailed Photos
Product Advantages
There are many kinds of feeding methods, such as bucket elevator, inclined elevator and belt conveyor. The dust removal mode can be equipped with cyclone dust collector, bag pulse dust collector, simple bag dust collector, etc. The air suction part is the front and rear double suction air duct type, which can be adjusted independently and is suitable for a variety of grains, with strong ability to remove light impurities and with good effect. The vibrating screen adopts 2 or 3 layers structure, which can be equipped with round hole sieve and slot hole sieve at the same time. It can be separated according to the width and thickness respectively, and has good small impurity removal ability. It can achieve higher cleaning rate. The gravity separation part is a positive pressure gravity table. According to the density separation principle, it can remove impurities with small bulk density, such as not full, sprout, mildew, disease, worm eaten grain, straw and so on. This series of combination cleaner has realized modular combination. There are mainly elevator module, duster module, gravity table module and vibration screen module. The cleaner can be any combination of modules, convenient for different users.
Product Parameters

Model		5XFZ-150	5XFZ-150B	5XFZ-150S
Max-capacity	Fine-cleaning	8 t/h (wheat seed), 2-4 t/h(sesame seed)
	Pre-cleaning	15 t/h (wheat seed), 5t/h(sesame seed)
Overall size		3280×2300×3130mm	3280×2300×3270mm	5780×2300×3130mm
Vibration sieve size		1500×2000mm×2 Layer	1500×2000mm×3 Layer	1500×2000mm×2 Layer
Gravity table size		2200x1650mm	2200x1650mm	2200x1650mm x2
Weight		3500 Kg	3550 Kg	3850 Kg
Cleaner power		8.1 kW	8.5 kW	15.1 kW
Cyclone power		8.25 kW	8.25 kW	8.25 kW
Total power		16.35 kW	16.75 kW	23.35 kW
Re-mark		Can be connected with the SM-150 classifier module

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
FAQ
How to choose and purchase seed combination cleaner?
1. According to processing capacity requirements.
The processing capacity of our seed combination cleaner ranges from 5-30 tons/hour, and users need to select the appropriate model according to their own processing capacity.

2. According to the type of material.
Different models of combination cleaners are suitable for different types of crops and seeds, so users need to select the most suitable machine according to the actual materials. Some manufacturers have weak R&D capabilities, few models, and it is unscientific and unreasonable to use a single machine to cleaning all the materials. At least it will cause waste of user's funds, and more importantly, it will affect the effect of cleaning.

3. According to the clarity original materials.
In the case of high impurity, more processing steps are required, such as double gravity table and double vibrating screen. On the other hand, can select simple structure.

4. Based on available funds.
The price of the single machine of our company's combination cleaner ranges from USD6,500 to USD13,000 and users can purchase the most cost-effective model according to the affordable funds.

5. Overall dimensions of the combination cleaner.
There are many models of combination selecting machines, and the dimensions of each model are different. Users need to consider the size of their own plant and the size of the warehouse door to select model of cleaner, to avoid buy the equipment that cannot be placed in the plant.
Overseas users, because they need container transportation, also need to consider this issue, and cannot choose equipment blindly, which results to dismantle more parts or cannot be transported.

6. Choose a good manufactory.
There are many manufacturers of combination cleaners in China and with uneven quality. Therefore, we advised to consult with friends who have used the combination cleaner before purchasing, or visit various manufacturers. Whether in the product quality control or after-sales maintenance of equipment, large manufacturers have more advantages.

Seed combination cleaner is the mainstream in seed and grain processing industry in China. We will continue to improve existing products and develop new products, and contribute to the development of agriculture.
