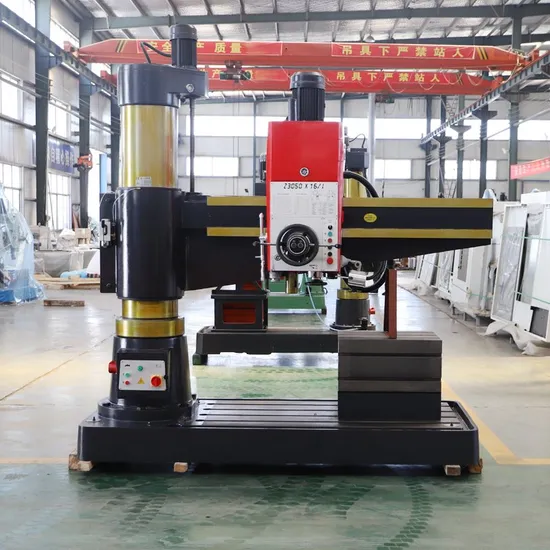

Z3050X16 Metal Radial Arm Drill Machines Hydraulic Deep Hole Radial Drilling Machine

Product Description

Product Description

Main technical parameters	Z3050X16/1
Maximum driling diameter (mm)	50
Distance from spindle end face to worktable(mm)	320-1220
Distance from spindle center to column generatrix(mm)	350-1600
Spindle travel (mm)	315
Spindle taper (Morse)	5
Spindle speed range (rp.m)	25-2000
Spindle speed series	16
Spindle feed weight range (mp.m)	0.04-3.2
Spindle feed series	16
Rocker arm rotation angle (°)	+180°
Main motor power (kw)	4
Lifting motor power (kw)	1.5
Machine weight (kg)	3500
Overall dimensions(mm)	2500x1070x2840

The Z3050 radial drilling machine has a drilling diameter of 50mm, which is mainly composed
of a base, an inner column, an outer column, a rocker arm, a headstock, and a workbench. The
inner column is fixed at one end of the base, and an outer column is sleeved on the outside of
it, and the outer column can rotate 360 degrees around the inner column. One end of the rocker
arm is a sleeve, which is sleeved on the outer column to move up and down. Because the
screw rod and the outer column are connected as a whole, and the lifting nut is fixed on the
rocker arm, the rocker arm cannot rotate around the outer column, but can only rotate around
the inner column together with the outer column.
FAQ
Q1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact
model .You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: Where is our factory located? How can I visit there?
A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone,
Tengzhou City, Shandong Province, China.
Q3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
Q4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the
machine, we will send machine photo and video for you to confirm.
Q5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Q6.the warranty?
The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for
you within 48 hours.

---
