Tractor Support Power Driving Drive Disc Harrow High Efficiency Land Preparation

Product Description

Product Description

YuCheng Xinyi Machinery Factory
Product Technical Parameter

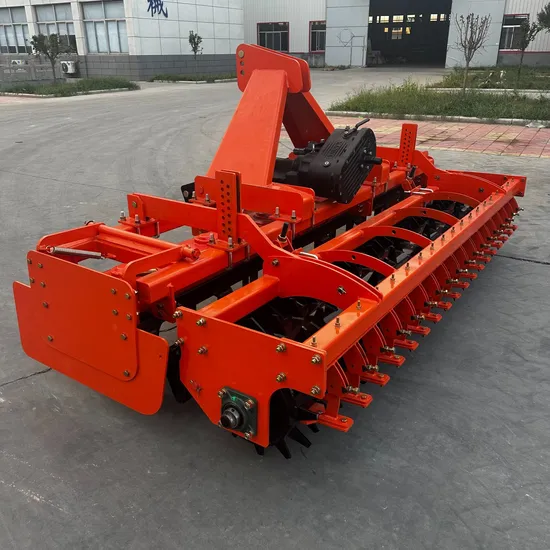

Driven disc harrow 1. Three-dimensional compound operation, complete soil crushing, pressing, and leveling at one time, achieving the agronomic requirements of "flat, even, loose, crushed, clean, and moist", providing a good seedbed for seeds.2. Unique vertical rotary soil crushing method, one operation to reach the state of sowing, while pressing the straw into the soil, which is conducive to the conversion of straw into organic fertilizer and increase crop yields.
Product Material
1. Gears and transmission shafts are made of high-strength alloy steel with more stable quality.
2. Rake teeth are made of high-strength alloy material with better wear resistance and torsion resistance.
3. Heavy-duty pressure roller structure design, better compaction, water retention and moisture retention effects.
4. Reinforced flat soil plate design, more thorough leveling of soil ditch.

Model	3m	3.5m
Weight	1700kg	1940kg
Overall dimensions	1490*3140*1400mm	1520*3640*1420mm
Rake tooth depth	32cm	33cm
Hydraulic roller diameter	32cm	32cm
Working width	3m	3.5m
Matching power	180hp	200hp

Product Images: Packing & shipping:Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers
Our Company :

Business type	Manufacture
Location	Yucheng, Shandong,China
Year Established	2005
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust.

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently. FAQ: 1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list. 2. Q: Business terms A: Shipment time: 25-40days after your payment Shipment: By sea Loading port: Qingdao port, China Destination port: ...To be advised Payment: T/T, L/C Warranty: 1 year 3.Q:How can I order from you? A: Please send us your enquiry list; we will reply you within two working days. 4.Q:If the finger I look for are not in your catalogue, what should I do? A: We can develop it according to your drawing or sample. 5. Q: Why choose Xinyi for cooperation? A: Comparing with our competitors, we have much more advantages as follows: 1. More than 30years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service 3. More agri machines for your choice 4. More New products into your range to avoid price competition 5. Larger quantity production and shipment 6. Better quality to guarantee better Credit. 7. Faster delivery time: Only7days 8. More stick quality checking before shipment. 9. More reasonable after-sales service terms. 10. More famous brand: "XINYI" brand and "CE"ceitification.; 11.Lower repair rate and bad review rate 12. We have American Branch to show our main products. We can give customers best service. If you have any questions, please feel free to contact me.

---
