Lifting Equipment 3.2 Ton Steel Wire Rope Puller Tirfor Cable Pulling Hoist

Product Description

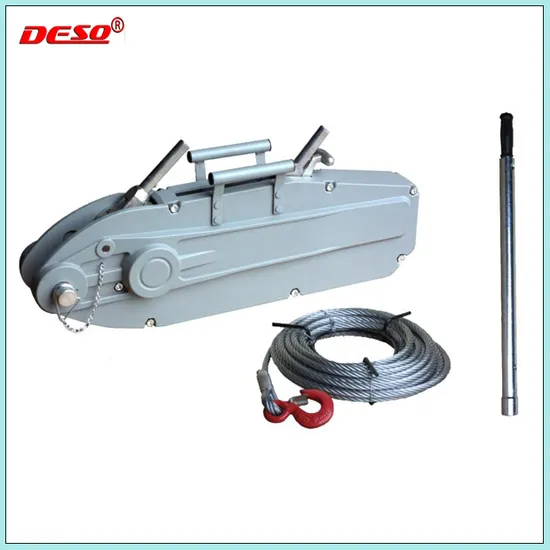

Wire Rope Pulling Hoist / Tirfor
* Small-sized, compact, hand-operated lifting tool
* Housing made of aluminum alloy
* Capacity: 0.8t×20m, 1.6t×20m, 3.2t×20m, 5.4t×20m. wire rope length can be customized.
* All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
* Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
* Overload protection ensures personal safety in operation.
* Built-in shear pins can be replaced without removing the load.
* High quality aluminum body
* Overload protection
* Light in weight, convenient to carry,portable electric winches
* Handle length is adjustable, so it is very convenient to regulate the hand force according to the lifting force.
* Widely used for lifting, pulling, tensioning, and tightening in many areas
* Easy operation, convenient maintenance
Product Show
Multiple Colour AvailableData Sheet

Model		TF-08	TF-16	TF-32	TF-54
Rated Capacity (kg)		800	1600	3200	5400
Rated Forward Handforce (N)		341	400	438	850
Rated Forward Travel (mm)		≥52	≥55	≥28	≥25
Wire Rope Dia (mm)		8.3	11	16	20
Standard Wire Rope Length (m)		20	20	20	20
Wire Rope Safety Factor		5:1	5:1	5:1	5:1
Max Travelling Load (kg)		1200	2400	4000	8100
Net Weight (kg)		6.4	12	23	58
Dimension (mm)	A	44	56	70	90
	B	60	68	98	160
	C	101	120	150	200
	D	420	545	645	935
	E	430	556	666	940
	F	172	200	227	300
	G	240	270	320	410
	L1	80	80	80	88
	L2	/	120	120	135

Shapes For Different Capacity
