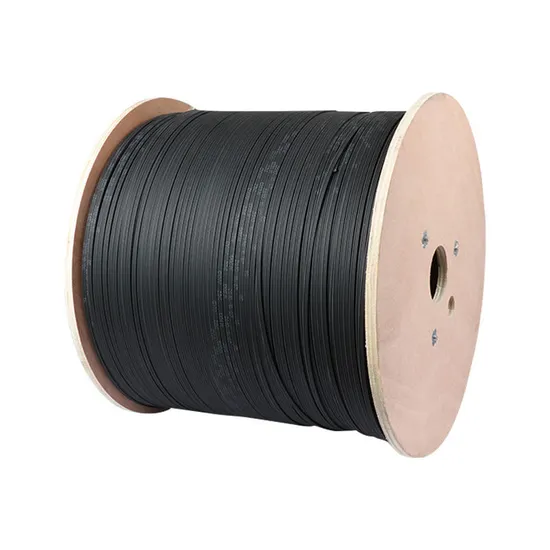

2.0mm*5.0mm Outdoor FTTH G657A1 G657A2 Drop Wire LSZH Optical Flat Fiber Cable

Product Description

Product Description
1 core 2 cores 1km 2km 3km Plywood Drum Self-supporting FTTH DROP CABLE SINGLE MODE G657A1 FIBER OPTIC CABLE
Structure:
Central optical fiber(s) with 2 parallel steel wires (or FRP) as the strength members placed on both sides
An additional strength member(steel wire or FRP).
Finally a LSZH jacket is extruded outside.
Product Parameters

Counts	1-4
Cable Diameter(mm)	2.0*5.0
Cable Weight (Kg/km)	18
Fiber Type	G657
Tensile Strength(N)	Long/Short Term:300/600
Crush Resistance(N/100mm)	Long/Short Term:1000/2200
Bending Radius(mm)	Static/Dynamic:G657:20D/40D
Temperature(ºC)	Storage /Operation:-20ºC ~70ºC

Packaging & Shipping

Our Advantages

Company Profile
We are one of the leading global manufacturers of optic fiber and cable, and provides integrated and appropriately priced solutions for telecommunication applications around the world.
Equipped with the most advanced fiber drawing towers, high-speed screening machines introduced from France, and other optical and mechanical testing facilities, Changrong is capable of producing 15 million core kilometers of fibers and cables with superior performance.
With highly advanced R&D and cutting-edge technology within the industry, Changrong fiber optic cables have been widely applied in China Mobile, China Unicom, China Telecom etc. In China, and exported to North America, South America, Africa and Southeast Asia market.
Main product type:
Optical Fiber: G652D G657A1 G657A2
Air Blown Micro Cable: GYCFTY
All Dielectric Cable: ADSS ASU GYFTY
Duct Installation Cable: GYTA GYFTA GYTS GYFTS
Aerial Installation Cable: GYTC8Y GYTC8S GYXTC8S GYXTC8Y GYFTC8Y GYFTC8S
Direct Burial Installation Cable: GYTY53 GYTA53 GYFTA53
Central Uni-tube Cable: GYXTW GYFXTY GYFFTY
Drop Cable: GJXH GJXFH GJYXCH GJYXFCH
Yearly productive capacity
Optical Fiber: 15 million fkm
Outdoor cable : 35000KM cable length
Drop Cable: 99600KM cable length
As a world-class expertise in optical fibers and cables, Changrong is determined to make a commitment to quality, performance and customer services. Let′s cooperate and evolve to change the way the world communicates.
FAQ
1.Are you manufacturer?
Yes. We are the real manufacturer in Chuzhou Anhui Porvince, China.

2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.

3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001, ISO14001

6.What is your delivery time?
Usually within 7-10 working days

7.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output is 35000 KM;
FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;

---
