Phillippines Use Agri-Straw Bale Shredder Rotary Crusher for Alfalfa Grass Hay

Product Description

Phillippines Use Agri-straw Bale Shredder Rotary Crusher For Alfalfa Grass Hay


Product Description

Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability, and convenient disassembly and transportation.

Product Parameters
Technical Parameter of Straw Bales Crusher:

Model	9FC-80	9FC-100	9FC-130	9FC-150
Power	22-30kw	45-55kw	75kw	90kg
Capacity	2-3t/h	3-5t/h	5-7t/h	8-10t/h
Crushing effect	3-8cm	3-8cm	3-8cm	3-8cm
Top diameter	1800mm	2200mm	2600mnm	2800mm
Bottom diameter	1500mm	1800mm	2200mm	2400mm
Number of blades	24pcs	24pcs	24 pcs	24 pcs
Discharge method	Spray	Spray type / bottom discharge	Bottom discharge	Bottom discharge
Total Weight	1700kg	2300kg	2800kg	4300kg
Dimensions	3.2*1.8*2m	3.6*2.2*2.3m	4*2.6*2.5m	4.7*2.8*2.8m

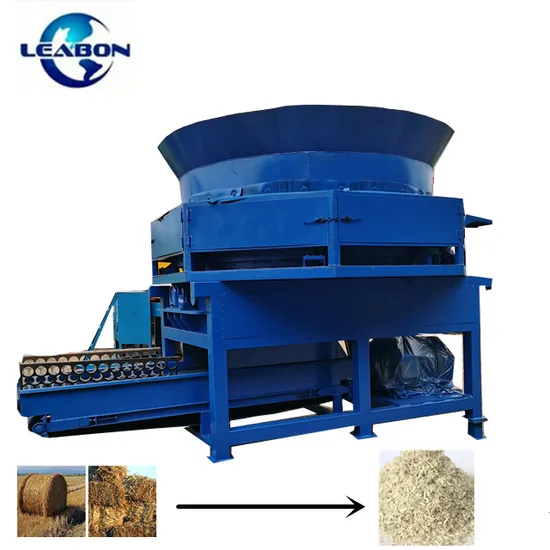

1). Fixed Type Straw Bales Crusher/Shredder with Electric Motor
2). Portable Type Straw Bales Crusher/Shredder with Diesel Engine
3). Portable Type Straw Bales Crusher/Shredder with Electric Motor:
Detailed Photos
1), Inside Pitures of Straw Bales Shreder :
2). Spare partS OF Straw Bales Shredder : Screen + Hammers
Production Site at Customer's Site :
Company Profile
Our Production Workshop:

Packaging & Shipping
Export Package and Shipping to customer :
FAQ
Before quote, pls confirm follows information with us , so then we can suggest a suitable model straw bales crusher/shredder to you accoridngly.

1	What's your raw material for crushing ? - Straw, Hay, Grass, Alfafa, Corn Stalk, Wheat/Rice Straw, Suguar Cane etc .
2	How many tons raw material you want to processing per hour? - 2-3T/H, 3-5T/H; 5-7T/H; 8-10T/H

---
