US$6,000.00-39,000.00
|
1 unit
(MOQ)
|
Basic Info.
Storage Objects
Liquid, Fuel, Diesel, Gasoline
Product Name
Mobile Fuel Station
Feature
Safe and Economic
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Applicable Industries
Energy & Mining, Other, Transportation
Core Components
Pump, Tank, Dispenser
Key Selling Points
Easy to Operate
Medium
Diesel or Gasoline
Application
Fuel Refueling
Transport Package
Nude Packing, or by Container
Specification
5, 000 liters -100, 000 liters
Production Capacity
20 Units Per Month
Product Description
SHENGDING MOBILE FUEL STATION
https://shengdingmetal.en.made-in-china.com/product-list-1.html Product Parameters
| S. No | Description of configuration | Specification |
| 1 | Explosion-proof storage tank | Total volume 5m3-40m3. Tank steel Q235, submerged arc automatic welding process. |
| 2 | Lightning and static protection set | With electrostatic grounding device |
| 3 | Explosion proof materials | V-type explosion-proof material |
| 4 | Fuel dispenser | Dispenser equipped with pump and filling gun |
| 5 | Fuel loading system | Explosion proof fuel pump with flow rate of 38m3 / h |
| 7 | Liquid level measurement system | Measuring range 0.5-3m, measuring error ± 1mm, with LCD, temperature monitoring function, high liquid level alarm and low liquid level alarm. |
| 8 | Airtight loading system | DN80 self-sealing ring valve is adopted for quick connection of oil loading port. |
| 9 | Discharging system | DN40 oil outlet pipe, equipped with maintenance protection device. |
| 10 | Emergency cut-off device | DN40 emergency cut-off valve, normally closed, automatically cut off oil in case of fire or emergency. |
| 11 | Painting | The equipment is polished, derusted and degreased. With external three coats of painting: 80 micron epoxy zinc rich primer, epoxy micaceous iron midcoat, polyurethane cooling and fireproof finish. |
| 12 | Other configuration | Anti-static system Oil leakage detection device Manual oil measuring system Automatic fire extinguishing system Emergency pressure relief device Power supply system Anti-overflow system Lighting Filter unit Cleaning device Safety auxiliary facilities Door |

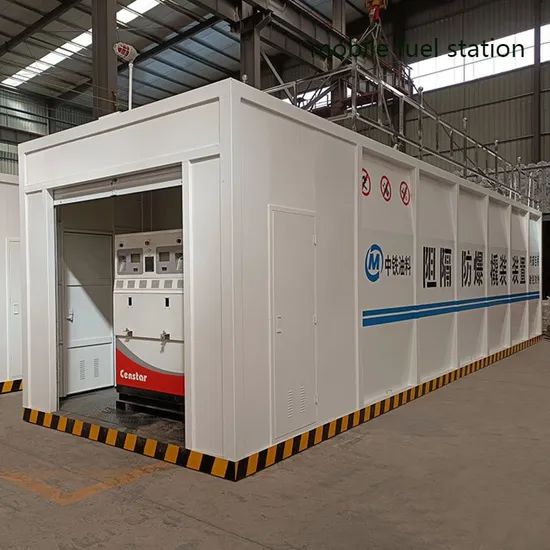

Function and Application Mobile fuel station is for the distribution of diesel and gasoline with tanks of variable capacity. It is composed of a container, divided into two main compartments, compartment for fuel tanks and compartment for pump and dispenser, and also provided with optional generator. Technical Features --- Fuel tanks of variable capacity, for diesel or petrol, also with option both diesel and petrol in one station.
--- Explosion-proof type to ensure safety.
--- Fuel loading system to load from fuel tank truck.
--- Top lockable hatches to get access to the manholes of tanks and refuel from above.
--- Separate compartment for generator or other equipment, complete with lockable door.
--- Leak detector systems and alarms (in case of double skin tanks).
--- Electric switchboard in the generator compartment.
--- Fuel level indicator
--- Emergency cut-off
--- Static grounding
--- Stainless filters
--- Lighting system
--- Optional generator to supply electricity power Main Accessories Packing & Shipping Our Service Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. * More than 95% of the timely response rate, timely response to customer questions After-Sales Service
* Training how to install the tank, training how to use the filling station. * Engineers available to service equipment overseas.
* Use online contact methods such as skype whatsapp wechat to provide online services to customers. Certifications
>>
