Stainless Steel Bay Leaf Herb Powder Pulverizer Pepper Chili Powder Grinders Machine

Product Description

Stainless steel bay leaf herb powder pulverizer pepper chili powder grinders machine
Product Description

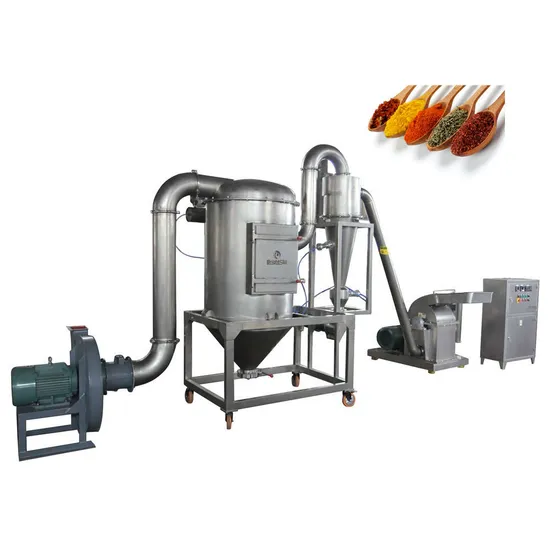

Product Introduction The machine is made up of crusher part, cyclone, dust collecting box, blower and control box.It uses fixed plate and the relative motion between the activity hammer, making materials impacted and shredded under effect of centrifugal force.
BS spice pulverizer set has a very good effect for different kinds of spices, like chilli, pepper, cinnamon, cumin, bandits, cardamom, garlic, star anise, cloves, geraniol, turmeric, ginger, fennel, angelica and other material with high content of oil or fibre. For root, herb and leaf, the grinding effect is also good.
With hammer type knife, this machine has a very good effect for milling spice,like chilli,cumin,turmeric....etc
* The particle size can be easily adjusted by changing the hammer rotation speed as well as the screen size.
* The Hammer Mill is a suitable grinder for a wide variety of materials including heat sensitive ones.
* The pressure loss of the machine is very low, making it easy to incorporate the machine into any process line.

Below is the a complete processing line for various kinds of spice and herb powder making:
Technical Data:

Model	BS-200	BS-320	BS-400	BS-630	BS-880	BS-1000
Production capacity(kg/h)	50-300	100-400	100-1200	300-1800	400-2000	1000-3000
Output size(mesh)	12-120	12-120	12-120	12-120	12-120	12-120
Main motor power (KW)	7.5	11	22/37	37/45	55	45
Discharging motor (KW)	0.75	0.75	0.75	1.1	1.5	1.5
Blower motor (KW)	3	3	15	18.5	18.5	30

Main Features: 1) Simple structure ,easy in installation and maintenance.
2) Dust-Free Operation 4) Quick, Easy Cleaning
4) Long Service Life
4) During production,temperature remains normal, will not get hot. So material's color and nature won't change.
5) It can grind spice and oil material with oil content 10%~20%.
Single mill of BS hammer mill - BSF High efficient mill
It is the main crusher part of our BS hammer mill spice pulvierzer, that can be used as a single mill like the one in the
picture below, it is suitable for small capacity, small space or limited budget. If you need continuous and no dust big
production, the above BS hammer mill will be the best choice.

Model	BSF-8	BSF-16	BSF-32
Production capacity (kg/h)	10-100	30-300	50-500
Output size(mesh)	12-120	12-120	12-120
Power(KW)	4	7.5	11
Speed(rpm)	2350~4260	1000~4400	1000~4400

Main Features: 1) Eliminates fines in the products - Uniformly sized products. 2) Very little heat generation during grinding
3)Easy to disassemble and clean.
4)Easy to move as the mill is on wheels.

Detailed images
Single Mill: BSF-16 hammer mill BSF-32 hammer mill
Two types of grinding blades:: 1) Hammer type 2) Knife type
Hammer type knife is suitable for fine powder making; Blade knife is suitable for granules/flakes making.
Not only Hammer Mill Spice grinding machine!: Not only Hammer Mill Spice grinding machine, we also have other different spice & herb grinding machines for different capacity and fineness mesh. We provide overall one-stop spice&herb product processing machines and solutions.
We provide washing machine,cutting machine,dryer,
roasting machine, crusher, grinder, pulverizer, mixer, filling and packing machines......etc
Company Information
Brightsail spice & herb machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2022 year, we have exported our machines to more than 75 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Packaging & Shipping
Packaging Details: Export standard package. wooden case or container.
For small machine, we pack it in wooden case.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
