Automatic Detergent Washing Powder Granule Powder Mixer/Potato Wheat Tapioca Starch Vertical Blender/Double Screw Cone Mixing Machine

Product Description

Product Description 1. Introduction:
Double screw cone mixer for powder mixing is used to mix powder, granules, crystallized particles, pellets and agglomeration or caking, also mixing with spraying liquids.
Double screw mixer machine is applied in requirement of gentle mixing and no-leftover discharge.
Double screw mixing machine is also suitable for intermediate storage of temporary blending.
2. Working Principle and Features:
Suspending arm of double screw cone mixer has two blending screws which are of different length and diameter. Suspending arm does revolution and the two asymmetric screws make self rotation at the same time, which makes the powdery materials elevated up and down and also does circular movement. So materials can be mixed completely and evenly under four kinds of movements.
Double screw mixing machine is characterized by gentle, high accurate mixing, good homogeneity and no damage to product.

3. Blending structures of Double Screw Cone Mixer:
Double screw type, ribbon type and paddle type are mainly used.
4. Liquid spray system, Heating and cooling jacket:
Double Screw Cone Mixer can also be equipped with liquid spraying device and heating or cooling jacket.
5. Discharging method:
There are many discharging ways for customers to choose: manual plum blossom dislocation valve, pneumatic butterfly valve, spherical valve, ball valve, etc.

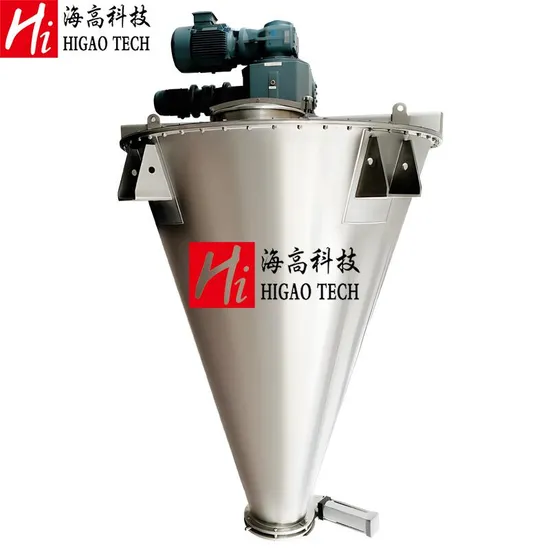

(SM Series) Double Screw Cone Mixer (Conical Mixer) of HIGAO TECH
Model	Total volume	Loading volume	Capacity	Motor	Diameter×Height	Weight
SM-100	100L	60L	60kg	2.2kw	Ø700×1500mm	150kg
SM-200	200L	120L	120kg	3kw	Ø950×1600mm	250kg
SM-300	300L	180L	180kg	3kw	Ø1000×2060mm	400kg
SM-500	500L	300L	300kg	4kw	Ø1150×2350mm	600kg
SM-1000	1000L	600L	600kg	5.5kw	Ø1580×2840mm	1000kg
SM-1500	1500L	900L	900kg	5.5kw	Ø1800×3200mm	1500kg
SM-2M3	2M3	1.2M3	1200kg	7.5kw	Ø1950×3500mm	1800kg
SM-3M3	3M3	1.8M3	1800kg	7.5kw	Ø2170×3760mm	2300kg
SM-4M3	4M3	2.4M3	2500kg	11kw	Ø2280×4360mm	2500kg
SM-5M3	5M3	3M3	3000kg	15kw	Ø2470×4550mm	3000kg
SM-6M3	6M3	3.6M3	3600kg	15kw	Ø2560×4800mm	3500kg
SM-8M3	8M3	4.8M3	48000kg	18.5kw	Ø2790×5600mm	3900kg
SM-10M3	10M3	6M3	6000kg	18.5kw	Ø3000×5900mm	4500kg
SM-12M3	12M3	7.2M3	72000kg	22kw	Ø3200×6000mm	4800kg
SM-15M3	15M3	9M3	9000kg	22kw	Ø3450×6400mm	5500kg
SM-20M3	20M3	12M3	12000kg	30kw	Ø3900×7100mm	8000kg
SM-25M3	25M3	15M3	15000kg	37kw	Ø4100×7500mm	10000kg
SM-30M3	30M3	18M3	18000kg	45kw	Ø4300×7800mm	12000kg

Related Products Click on this link to view more products.
Application
Company Profile What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
