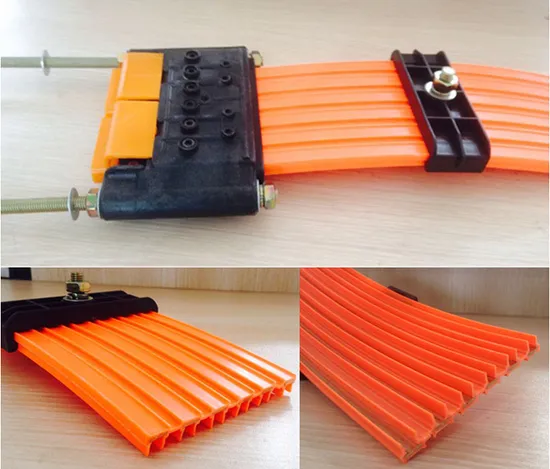

Hot Selling Htr-3-10/50A High Tro Reel System Conductor Rail for Mobile Derrick

Product Description

Crane Copper Busbar System For Power Supply
*Sepecification

1. Conductor Qty: 3P 4P 6P
2. Current: 50A~140A
3. Conductor material: Oxygen-free copper
4. Insulation Material: Quality PVC
*Application

Crane, low power curve hoisting equipments, mobile machinery, machinery plants, small steel factory, Amusement equipment etc.
Ambient temperature <55ºC


*Advantages

1. No joint, long distance continuous power supply.
2. Small space, Low noise.
3. Low voltage drop.
4. Stable operation, fast speed, Good conductivity and contact performance.
5. Easy to install, replace and transport.
6. Long service life.
7. The minimum bend radius is 750mm.
*Technical parameters

Type	Poles	Conductor Cross Section (mm2)	Max. Current (A)	Weight (kg/m)
HTR-3-10/50A	3	3x10	50A	0.57
HTR-3-15/80A	3	3x15	80A	0.73
HTR-3-20/100A	3	3x20	100A	0.85
HTR-3-25/120A	3	3x25	120A	0.98
HTR-3-35/140A	3	3x35	140A	1.27

Type	Poles	Conductor Cross Section (mm2)	Max. Current (A)	Weight (kg/m)
HTR-4-10/50A	4	3x10+1x10	50A	0.75
HTR-4-15/80A	4	3x15+1x10	80A	0.90
HTR-4-20/100A	4	3x20+1x10	100A	1.05
HTR-4-25/120A	4	3x25+1x10	120A	1.15
HTR-4-35/140A	4	3x35+1x10	140A	1.43

Type	Poles	Conductor Cross Section (mm2)	Max. Current (A)	Weight (kg/m)
HTR-6-10/50A	6	6x10	50A	1.10
HTR-6-15/80A	6	6x15	80A	1.50

---
