60W 5FT LED Linear Rail Trunking Lamp Fixture with 5 Years Warranty

Product Description

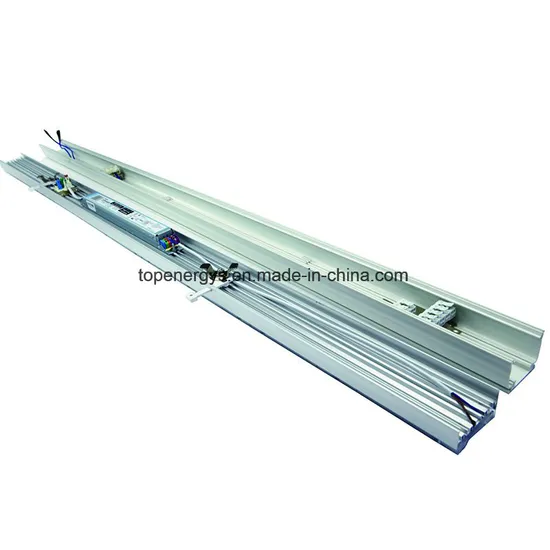

LED LINEAR TRUNKING SYSTEM
The LED Linear Trunking System is a continuous LED lighting system.
All system components, trunking rail and luminaire inserts are perfectly matched according to 1500mm/600mm system dimensions.
Triple, double and single-length rails can be combined to comply with the space involved.

FEATURES:
Low installation cost - everything in one box and installation is tool-less The high light efficiency of 130 lm/W makes reduction on energy consumption and additional cost Ra >80 CCT: 3,000K/4,000K/5,000K/6,000K A wide range of optics from 30° to 120° distribution, as well as asymmetric and double asymmetric distribution Emergency versions available Dimming versions available Different length with various power is available X, L and T Standard Module Node connectors with electrical feed-in and feed-out Mounting Options: chain suspended, cord suspended, rod suspended or surface mounted Colour scheme: White
APPLICATIONS:
Commercial Industrial Warehouse Other indoor lighting
Technical Data Sheet

Light Housing
Material	Aluminum profile
Colour scheme	White
Installation type	Rotatory knob or holding clamp
Dimensions( Length x Breadth x Height)	1,435 x 70 x 70mm
Weight	Approx.4 kg
Protection type	IP20
Illuminant properties
Illuminant Type	LED-Moduls with Mid-Power-LEDs
Optical System	Wide,Narrow,wide,Flat and double Asymmetric light distribution
Luminous Flux	7,200lm - 7,800lm
Luminous Output	120lm/w -130lm/w (Customized)
Colour Temperature	3,000K / 4,000K / 5000K / 6000K
Colour Rendering Index(Ra)	> 80
Dimming( Power control)	With / without DALI
Lifetime at (ta)30°	50,000 h
Electronic Properties
Power Rating	60W
Protection class	SKI
Operating voltage	100 - 240V AC
Frequency	50 / 60 Hz
Installation Requirements
Application areas	Halls,warehouses,manufacturing facilities,sales premises
Specific Installation	Rail- Light System
Installation height	3 to 20m
Permissible ambient temperature (ta) 30°	-25ºC to +35ºC
Other properties
Certification	CE / TUV / SAA / UL
Connection with circuit breaker (B16)	150 Pcs
Special features
End cover	IP20
Blind cover	1,435 mm
Mounting Rail	1,435 mm

Node Connector

All system components can be combined without tools. X, T and L connectors expand the system's application range.
Each node connector has diverse of electrical feed-in and feed-out. The node connector is not only to connect the cross trunking,
but also to connect the wire inside the trunking, and the node connector itself could even be the electricity feed-in point.


Illuminated modul

Connect with each other in series.
General safety instructions and information

Installation and maintenance must be performed by authorised and trained staff.
- Before wiring, make sure that the cables are de-energised. During wiring work, make sure that the cables remain
de-energised (e.g. prevent switching back on).
- Observe your national safety regulations for the installation and use of this lamp.
- The manufacturer accepts no liability for injuries or damage caused by unintended use or incorrect installation.
- If the lamp is retroactively modified, the person who made the modifications then becomes the manufacturer.
- To avoid risks, the lamp must only be operated if there are no visible signs of damage to components, in particular
to the connecting cable.
- Only the manufacturer is authorised to replace defective components.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similarly qualified person.
+ All dimensions stated in mm.
+ The drawings are not to scale.
+ Technical changes are reserved.



















Connect with each other in series.
































































General safety instructions and information Installation and maintenance must be performed by authorised and trained staff. - Before wiring, make sure that the cables are de-energised. During wiring work, make sure that the cables remain de-energised (e.g. prevent switching back on). - Observe your national safety regulations for the installation and use of this lamp. - The manufacturer accepts no liability for injuries or damage caused by unintended use or incorrect installation. - If the lamp is retroactively modified, the person who made the modifications then becomes the manufacturer. - To avoid risks, the lamp must only be operated if there are no visible signs of damage to components, in particular to the connecting cable. - Only the manufacturer is authorised to replace defective components. - The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person. + All dimensions stated in mm. + The drawings are not to scale. + Technical changes are reserved.

---
