Product Description
Product Description

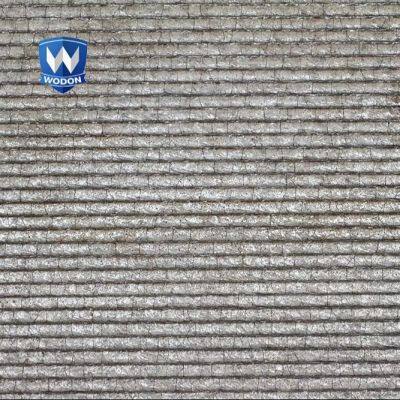

Product Descriptionwear plate liners and cutting edges for bucket excavators WODON Chromium Carbide Overlay Wear Plate, open arc and submerged arc welding. Product Namewear plate liners and cutting edges for bucket excavators MaterialQ235/Q345+Chromium carbide overlayBase metalQ235/Q345Hardfacing layerChromium carbide overlayChemical compositionC: 3.0-5.0% Cr:25-40%HardnessHRC 55-65MicrostructureCarbide (Cr7C3)volume fraction above 50%Wear resistanceHigh wear/abrasion resistanceFlatness tolerance±3mm/mThickness toleranceuniform overlay thickness, with tolerance within 0-0.5mmImpact resistanceMediumTechnologyHardfacing, open arc welding, submerged arc welding Plate SizeOpen arc welding wear plate: 1400*3400mmSubmerged arc welding wear plate : 1400*3000mm, 1400*3500mm, 2100*3500mmCusomized sizes Main thicknesses3+3,4+4,5+5,6+4,6+5,6+6,8+4,8+5,8+6,8+7,8+8,10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20,12+4,12+5,12+6,12+7,12+8,12+9,12+1,12+11,12+12,14+6,14+8,14+10,16+6,16+8,16+10,18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10, customized thicknesses.WorkshopProduction ProcessWelding process is the use of the most advanced open arc welding welding process, the various effects of this process on the performance of a very small base , and wear to maximize play. Composite wear plate is ordinary steel (Q235 (A3) or heat-resistant steel (15CrMo, 12Cr! MoV , etc. ) , stainless steel plate formed on the entire volume fraction of more than 50% Cr7C3 carbide -based wear layer , which with high wear resistance , impact resistance, deformable and welding performance, like steel , like direct texturing , cutting and drilling and other processing sectors , processed into mining engineering components to meet the wear and put into use . wear-resistant material with many compared wear-resistant composite plate has its irreplaceable notable features. We are specialized in researching, developing and producing wear resistant products with many years experience in this field. We have more than 180 employees, with an annual output of 90,000 square meters of wear plates and 9,000 tons of welding consumables. Wear Part ProductionUsing our wear resistant plate as raw material, WODON wear parts are nice looking and with excellent wear resistant strength. Quality of WODON wear parts is one of the best among peers. We produce wear parts like Vertical Mill, Roller Press, Wear Resistant Table Liner, Cement Grinder, Mill Grinder, etc. Our wear parts are available to be cut and profiled by Laser Cutting, Plasma and High Pressure Water Abrasive Cutting according to customer's requirements. Our Advantages 1 Packaging & ShippingPackaging Details: steel pallets and film wrapped Company InformationSince 2004, Wodon has more than 200 employees.Wodon product: flux cored welding wires, chromium carbide overlay steel plates, wear resistant partss, wear pipes, wear fittings.Welding wire and wear plate workshops Wodon's quality managmentWarehouse FAQQ: Are you trading company or manufacturer ?A: We are ISO certified flux cored welding wire and CCO wear plate factory. Q: Are you able to produce customized chemical composition and dimension?A: Yes, we could offer special welding wire and wear plate according customers' requirement.Q: How long is your delivery time?A: Generally it is 5-10 days if the regular goods are ready in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample free of charge.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 20~30% T/T in advance, balance against the copy of B/L. Other payment terms are negotiable. Q: Do you provide after-sales service ?A: Our company has a professional after-sales service team, the engineers have many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified. If our product meets your interest, please feel free to contact us as follow:
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
