Automatic Plastic Honey Solid Food Cookie Biscuit Cracker Nut Dried Fruit Storage Cosmetic Pet Preform Bottle Make Blow Making Molding Moulding Blowing Machine

Product Description

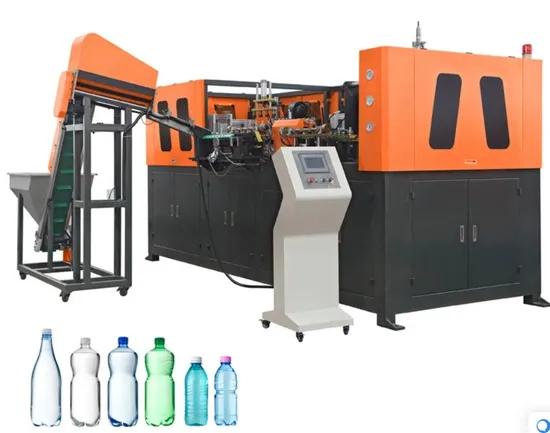

this type machine is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Item		YDZCL-2L-2E
Bottle type specification	Cavity	2
	Theory output	2400-2700
	Max. volume	2L
	Bottle mouth maximum overall diameter	80mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	0.75KW
	Maximum heating power	24KW
	All electric machine installation	27KW
	Actual consumption	8.1KW
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	1500Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	5000kcal/hr
	Frozen water flow	30L/min
Machine specification	Size of the machine	2.25x1.6x1.7
	Weight of the machine	2.5ton

Founded in 1970, Yuanda Group is committed to research and development and production of plastic molding equipment,Such as the Extrusion blow molding machine , PET blow molding machine ,Injection blow molding machine (IBM machine), Injection molding machine ect. including the peripheral equipment , such as refrigeration equipment and power generation system equipment. With more than 29 years old working expereice , we can offer the whole equipment for customer plastic factory produce complete project,and strong technical support and advanced complete sets of equipment for many customers in China and overseas.
Our Blow molding machine with best quality in China, due of our strong technical in this field. all important moving parts, we will study and check by computer simulation ADAMS and finite element analysis by ANSYS, advanced techincal in this field industry.so our machine with long life , win more and more good reputation from oversea.
assemblying machine , every process will be inspected by special person ,all work flow according to ISO9001 standard.our blow molding machine is best quality than others , because of our special manufactur process and best material , such as the following pictures.
Our Certification
The whole service flow is divided in pre-sale stage, manufacturing stage, installation stage and after sales service. Good communication and best advanced technical support for every customer, we always find out the best project for every customer .
Workflow Process
Our Advantages
7. Flex arm clamping enhance template structure, strong Power , high precision !
8. Servo motor from Physis Italy , high speed , save energy and high efficient
9. Color control touch screen with Moog parision from Japan , more convenient operation ,with remote control module , we can remote debugging ,modify and maintain on line , it is very easy for client to solve all problems .
10. Machine can connect with the conveyor in line directly, convenience , save labor cost, save space
11. Hydraulic system and valves from Yuken Industry Japan
12. Aviation military-grade wire connector , stable ,safe and easy to install
Yuanda Group has gained huge trust from international customers based on providing high quality blow molding machines and perfect aftersales service. Yuanda machines have been delivered to America,Poland,Mexico,Colombia,Peru,Argentina,Chile,Indonesia,Malaysia,Vietnam,Saudi Arabia, South Africa,Egypt and so on.
about many other advanced technical data, please require me !
Due to the company's fast technology update and technical confidentiality,for blow molding machine,Extrusion Blow Molding ,Injection blow molding machine ,PET blow molding machine , injection molding machine , blowing mould,plastic bottle making machine,plastic bottle mould ,bottle machine , relevant advanced technical parameters must be consulted our sales engineers.

---
