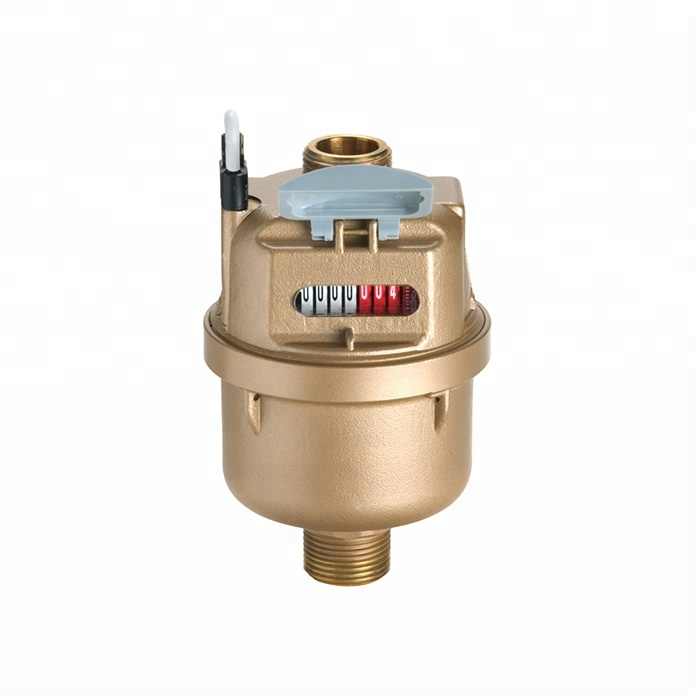

Wholesale ISO4064 Plastic Body Volumetric Rotary Piston Class C Water Meter
Product Details
Product Details
Product Description
Product Description
Water Pressure
≤ 1.6Mpa(16bar)
The water temperature
up to 50℃
Standard
ISO4064
Medium Temperature
Cold(Hot) Water
Size
DN15~DN20mm
Work Environment
Liquid Sealed Water Meter
Level Measurement
C
Application
Application: Measuring the volume of cold potable water passing through the pipeline.
Brand Name
MIDAS
Packaging
Carton, pallet and as per customer's requirement.
Feature:Volumetric rotary piston principle of measurement; LXH(Y)-15～20 is no location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline; Register is sealed with a special liquid to keep a clear reading in long term service; Mechanism use of high-quality material to ensure a stable characteristic; Accurate measurement with conformity to ISO 4064 :2005;R160 LXHY-15～20 Pulse output:0.5L/pulse . Working Condition: Water temperature:<50℃ Water pressure:≤1.6Mpa（16bar） Maximum Permissible Error in the lower zone from Q1 inclusive up to but excluding Q2 is ±5%. in the upper zone from Q2 inclusive up to and including Q4 is ±2% Main Technical Specifications
