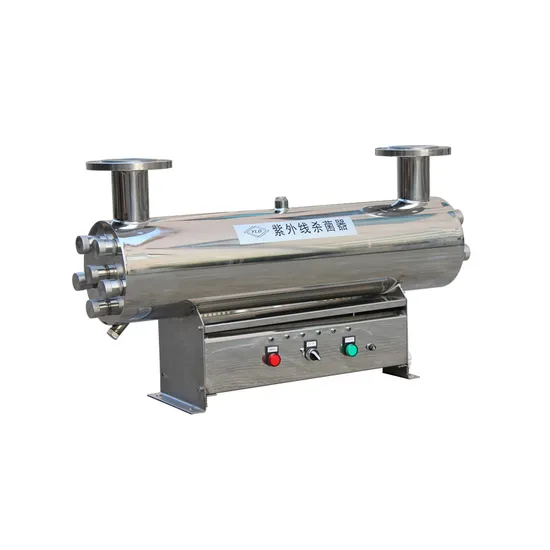

Industrial Water Treatment 50m3/Hr UV Sterilizer, Water Purifying UV Light Sterilizer

Product Description

UV Sterilizers
Ultraviolet water treatment systems (UV sterilisers) kill bacteria in water. They are often used to ensure safe drinking water from well, spring and borehole water supplies. Due to increased legislation are now regularly used in food and drink related industries.
Micro organisms including bacteria, viruses and cysts are all around us naturally. Many are harmless but exposure to "bad" ones can cause severe illness particularly in the elderly and very young. There is a wide variety of water treatment products available to improve taste, clarity, scale etc but none of these are designed to combat bacteria. Ultra violet water treatment is one of the safest ways to disinfect water as the UV rays are a natural component of sunlight. No chemicals are added so there is no danger from overdosing or creating a bad taste.

What does a UV sterilizer do?
A UV sterilizer is used to control infections by stopping the spread of microorganisms from one fish/coral/invertebrate to another through the water. It is also used in pond applications to control free-floating algae. When operated correctly, free-floating microorganisms will be killed by the UV light. Note that the organisms must be in the water that flows to the UV sterilizer. The UV light has no residual effect and will not kill organisms attached to fish (e.g., adult stage of ich) or rocks (e.g., algae).

How do UV sterilizers work?
The UV sterilizer utilizes a germicidal fluorescent lamp that produces light at a wavelength of approximately 254 nanometers (2537 Angstroms). The water with the bacteria/algae passes over the bulb (or around the bulb if a quartz sleeve is used) and is irradiated with this wavelength. As the light penetrates the bacteria/algae, it mutates the DNA (genetic material), preventing growth/multiplication of the organism.

Application
1.Food processing industry, including juices, milk, drinks, beer, practical oil and canned food.
2.Electronic industry.
3.Hospitals, various laboratory and high levels of pathogenic body water disinfection.
4.Households building, residential, office buildings, hotels, restaurants, water factories.
5.Purification and disinfection of shellfish, fish cleaning and disinfection
6.Military camp, field water supply system
7.Urban wastewater disinfection.
8.Swimming pool, other recreational water disinfection
9.Thermal power, nuclear power plant industrial, central air conditioning system cooling water.
10.Biological, chemical and pharmaceutical, cosmetics for the production of cooling water.
11.Sea water, fresh water breeding, aquaculture water
12.Agricultural water disinfection

Principle of Operation
UV water disinfection system design has been carefully conceived to provide adequate germicidal dosage throughout the disinfection chamber. The dosage, as it applies to UV disinfection, is a function of time and the intensity of UV radiation to which the water is exposed. Exposure time is related to the flow rate, the higher the flow rate, the lower the exposure time or the lower the flow rate, the higher the exposure time. The UV intensity is the amount of energy, per unit time, emitted by germicidal lamp. The Dosage is the product of UV intensity and the exposure time.

Limitation of Use
The UV water disinfection system NOT intended for the treatment of water that has an obvious contamination or intentional source, such as raw sewage, nor is the unit intended to convert wastewater to microbiologically safe drinking water.

Water Quality (in)
Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels

Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added measures to improve water quality to treatable levels. If, for any reason, it is believed the UV transmission is not satisfactory, contact the factory.
UV wavelength (nm)

DOSAGE is the product of intensity & time
dosage=intensity*time=micro watt/cm2*time=microwatt-seconds per square centimeter
(μW-s/cm2)
Note:1000μW-s/cm2=1mj/cm2(milli-joule/cm2)
Technical parameters

model	capacity	Power	inlet-outlet	reactor	panel	Anchor	G weight
	m³/hour	watt	mm	L×W×H	cm	screw	Kg
YLCn-005	0.3	16	1/2″	30×6×11	without	without	5
YLCn-008	1	25	1/2″	47×6.3×11	without	without	10
YLCn-050	2	40	1″	100×9×20	Φ8.9×25 (d×L)	69×4×Φ1	25
YLCn-150	6	80	1+1/4″	100×11×23		69×4×Φ1	30
YLCn-200	8	120	1+1/2″	100×15.9×30	Φ8.9×45 (d×L)	69×7×Φ1	35
YLCn-300	12	160	2″	100×15.9×32		69×7×Φ1	40
YLC-050	2	40	DN25/1″	100×8.9×30	25×30×12 (W×H×D)	60×4×Φ1	45
YLC-150	6	80	DN32/11/4″	100×10.8×30		60×4×Φ1	50
YLC-200	8	120	DN40/11/2″	100×15.9×40		60×7×Φ1	60
YLC-300	12	160	DN50/2″	100×15.9×40		60×7×Φ1	70
YLC-360	15	200	DN65/21/2″	100×15.9×40		60×7×Φ1	120
YLC-500	20	240	DN65/21/2″	100×21.9×50		60×11×Φ1.2	130
YLC-600	25	280	DN80/3″	100×21.9×50		60×11×Φ1.2	140
YLC-700	30	320	DN100/4″	100×21.9×50		60×11×Φ1.2	150
YLC-1000	40	360	DN100/4″	100×21.9×50		60×11×Φ1.2	160
YLC-1200	50	400	DN125/5″	100×21.9×50		60×11×Φ1.2	180
YLC-1500	60	420	DN150/6″	170×27.3×57		120×16×Φ1.4	210
YLC-2000	80	560	DN150/6″	170×27.3×57		120×16×Φ1.4	220
YLC-2500	100	700	DN150/6″	170×27.3×57	60×128×30 (W×H×D)	120×16×Φ1.4	275
YLC-3000	125	840	DN150/6″	170×27.3×57		120×16×Φ1.4	300
YLC-4000	150	1120	DN200/8″	173×32.5×65		120×20×Φ1.6	325
YLC-5000	200	1400	DN200/8″	173×37.7×72		120×22×Φ1.6	350
YLC-7000	300	2100	DN250/10″	175×42.6×80		120×24×Φ2.0	400
YLC-10K	400	2520	DN250/10″	176×52.9×95	60×150×40 (W×H×D)	120×22×Φ2.2	475
YLC-15K	600	3080	DN300/12″	176×78×110		120×32×Φ2.4	600
YLC-20K	800	3920	DN350/14″	Designated	Designated	Designated	Designated
YLC-25K	1000	4760	DN350/14″	Designated	Designated	Designated	Designated

---
