Ftdi USB to RS485 Rj9/Rj10/Rj11/Rj12/RJ45 Rj50 Wire End Cables

Product Description

FTDI USB to RS485 RJ9/RJ10/RJ11/RJ12/RJ45 RJ50 Wire End Cables Support customization

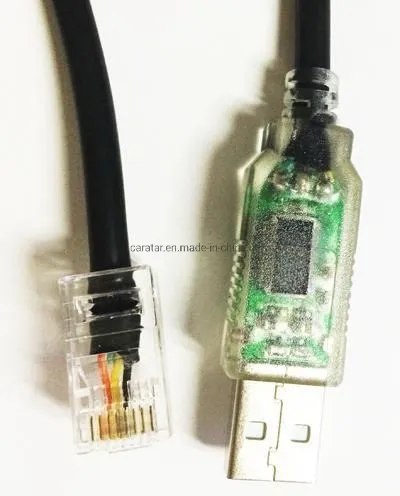

Product Description This Caratar USB-RS485 cables are USB to RS485 levels serial converters. The cables include FTDI's FT232RL USB to serial UART interface IC device, which handles all the USB signalling, and protocols, plus an appropriate transceiver. The cable provides a fast, simple method to connect equipment with an RS485 interface to USB.
1.USB-RS485 converter cable provides a USB to RS485 serial interface with customised end connectors.
2.Entire USB to RS485 translation protocol handled by the electronics over-molded in the cable.
3.Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions.
4.UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
5.Internal EEPROM with user writeable area.
6.Data transfer rates from 300 baud to 3 Mbaud.
7.Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
8.Extended temperature range (-40°C to +85°C).
9.Electronics available as separate PCB.

Baud Rate:	3Mbaud
Cable Length - Imperial:	6ft
Cable Length - Metric:	1.8m
Chip Type:	FT232R
Conversion Type:	USB to RS485 Converter
Converter Connector Type:	Free / Stripped End

Cable type : FTDI USB to RS485 RJ10 Wire End Cable Cable length : 1.8 m Cable type : 300V, Style VP2464 26AWG, 4 * 0.15 mm2 RJ10 connection
Products Description 1.Standards: conforming to USBV1.0, 1.1 and 2.0
2.RS-485,RS-422 TIA/EIA Standard
3.USB signals: VCC, DATA+, DATA-, GND and FG
4.RS-422 Signal: T/R+,T/R-,RXT+,RXD-,GND; RS-485 signals: T/R+,T/R-.GND
5.Working mode: asynchronous working,point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
6.Single chip USB to asynchronous serial data transfer interface
7.Direction control: Adopt the technology which automatically controls the data-flow direction,automatically distinguish and control the data-transmission direction;
8.Support Bits per second Data transfer rates from 300 baud to 921600baud;
9.UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
10.Flow control none,hardware and xon/xoff
11.Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
12.Transmission distance: RS-485/422 port:1.2km (300bps-921600bps).USB port : No more han 5 meters
13.Interface protection: surge protection and ±15KV ESD protection
14.Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
15.Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
16.Transmission media: twisted-pair cable or shielded cable;
17.Extended operating temperature range; -40 to 85 °C Applications USB to UART Cable
POS Printer Terminal
Networking System
Industrial and Power Meter
USB Bar Code Reader
USB Digital Camera Interface
USB Wireless/Wired Modem Introducing the Ftdi USB to RS485 Rj9/Rj10/Rj11/Rj12/RJ45 Rj50 Wire End Cables, a cutting-edge solution designed to seamlessly connect your USB devices to various RJ connectors. With its unparalleled functionality and reliability, this product is a must-have for professionals seeking efficient and hassle-free connectivity options.
Crafted with utmost precision, these cables are equipped with Ftdi USB technology, ensuring optimal performance and compatibility. The USB to RJ45 feature allows you to effortlessly connect your USB devices to RJ45 connectors, enabling seamless data transfer and communication. Whether you need to connect your computer to a network switch or a router, this cable provides a reliable and efficient solution.
Furthermore, the USB to RS485 Rj10 functionality offers a versatile and convenient way to connect your USB devices to RS485 Rj10 connectors. This opens up a world of possibilities, allowing you to connect your USB devices to a wide range of RS485-compatible devices such as industrial automation systems, security systems, and more. Experience enhanced data transmission and communication with this exceptional cable.
Additionally, the RS485 to Rj11 capability further expands the versatility of this product. By connecting your USB devices to RS485 Rj11 connectors, you can effortlessly integrate your USB devices with a variety of RS485-compatible devices, including telecommunication systems, modems, and more. Enjoy seamless data transfer and enhanced connectivity with this remarkable cable.
With its compatibility with various RJ connectors, including Rj9, Rj12, and Rj50, this cable offers unparalleled flexibility and convenience. Whether you need to connect your USB devices to telephones, intercom systems, or other RJ-compatible devices, this cable has got you covered.
In conclusion, the Ftdi USB to RS485 Rj9/Rj10/Rj11/Rj12/RJ45 Rj50 Wire End Cables are the ultimate solution for professionals seeking reliable and efficient connectivity options. With its advanced technology and compatibility with various RJ connectors, this cable ensures seamless data transfer and enhanced communication. Upgrade your connectivity experience today with this exceptional product.

---
