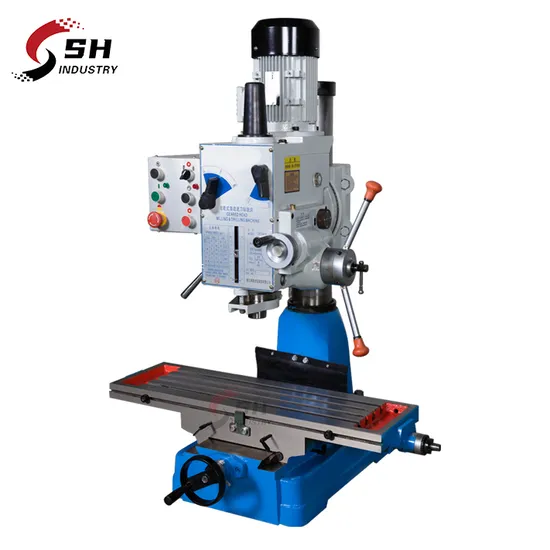

Metal Vertical Drilling and Milling Machine Zx7040b Zx7045b Gear Head Bench Type Drilling Milling Machine

Product Description

Metal Vertical Drilling And Milling Machine ZX7040B ZX7045B Gear Head Bench Type Drilling Milling Machine
Product Description
The main performance characteristics:
Reinforced type gear, transmission torque large
B1 type optional 2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Main technical Specifications:

Specifications	ZX7040B/ZX7040B1	ZX7045B/ZX7045B1
Max. Drilling capacity (mm)	40(Iron)/32(Steel)	45(Iron)/32(Steel)
Max. face mill capacity (mm)	80	80
Diameter of vertical milling (mm)	22	28
Diameter of column (mm)	115	/
Spindle travel (mm)	110	110
Distance spindle axis to column generating line(mm)	261.5	260
Max. Distance spindle nose to table (mm)	450	475
Spindle taper	MT4 orR8	MT4 or R8
Spindle speeds range (r/min)	50~1250/50~2500	50~1250/50~2500
Spindle speeds series	6/12	6/12
Spindle feeds (mm/r)	0.12 0.18 0.25	0.12 0.18 0.25
Dimension of worktable surface (mm)	Standard : 730x210 select: 820x240	Standard : 820x240 select: 730×210
Table travel (mm)	Standard :450×170 select: 540x170	Standard :540x170 select: 450×175
Dimension of base (mm)	605x400	605×588
Overall height (mm)	1100	Single-phase:1100 Three-phase: 1500
Main motor (W)	Single-phase:1100 Three-phase: 1500	750 or 1100
Coolant motor (W)	/	40
G.W/N.W(Kg)	390/350	405/360

Company Profile

Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
