High Pressure Finn-Power Large Diameter Ultra Thin Vertical Elbow Fitting Ferrule Crimper Machine Electric Mobile 1/4-4" Hose Crimping Machine with 18 Free Dies

Product Description

Product Description

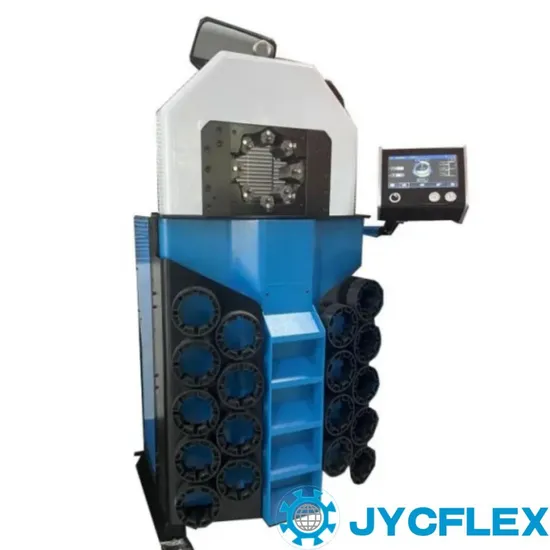

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Production name	hose crimping machine	Machine model	JYC-P180
Machine type	hydraulic crimping tool	Application	crimping hose
Crimping range	6-76mm(1/4--4 inch)	System pressure	31.5Mpa
Crimping force	8100kN	Operation mode	electrical
Dies set	18sets	Max opening	222mm
Dimension	1100*930*1250mm	Weight	1250KG
Voltage	220V/380V	Power	3KW/4KW
Rated Flow	10ml/r	Prodection Class	IP54

P180 Hose Crimping Machine FeaturesHigh Efficiency High Precision Good Product Consistency
Low labor Intensity Good Management Simple In OperationDetailed Photos
Front housing cover,cylinder and piston rod use material with CR,improve the oil cylinder and piston rod fatigue resistance.High quality
Reliable
durable
High performance to price ratio
ProfessionalIt will drive parts in the need to lubricate the parts and components of the output of the isolation,not to allow the leakage of lubricating oil.
Hydraulic hose crimping machine Application With a huge hydraulic cylinder and high crimp force(610T), P180 could crimp up to 4 inch hydraulic hoses very easily.
With transitional die sets, P180 4 inch hose crimper could crimp up as big as 4 inch and as small as 1/4 inch.
Big opening to accept putting big flange to crimp.
With dies rack, very easy to exchange dies and easy to stock.
18 sets with the machine and special dies could be customized as your request.
High speed and heavy duty and could be controlled automatically. Company Profile
-Our factory has 20 years of production experience and 8 years experience of export.
-In the long term foreign trade business practice,we have a good business reputation,smooth public relations,experienced personnel and rich information channels.
Production Show
Certifications
CE certificate .Verified by world-leading inspection company TUV Rheinland.
Customers and Reviews
Packaging & Shipping
FAQ
Q1 : Are you factory ?A1: Yes, We are factory direct sales, can also provide CE certificate.
Q2:Do you have the machine in stock?A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.
Q3:Could you customize the voltage?A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.
Q4: How about the warranty?A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work wrong; If your machine cann''t work,please contact us,we will help you fix it or send you some spares.Q5 : Could you customize dies molds?A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the dies pattern or dies number regarding your requirement.Q6:Does the machine operate easily?A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for each machine,we also could provide the operate video.Q7:Can you produce product with my own brand?A7. Yes, it''s available except famous brand which are not allowed.
Q8:Could you customize color for me?A8: Yes,we can customize the color regarding your requirement.

---
