Top Miboard Ifp75 V14. V4 Android 14 with Transcreen Mirror, Airgo DMS, RJ45 in, 4K Ai Camera, Coax, LAN in, 150 Touch Points, Gk6760V100

Product Description

Product Description

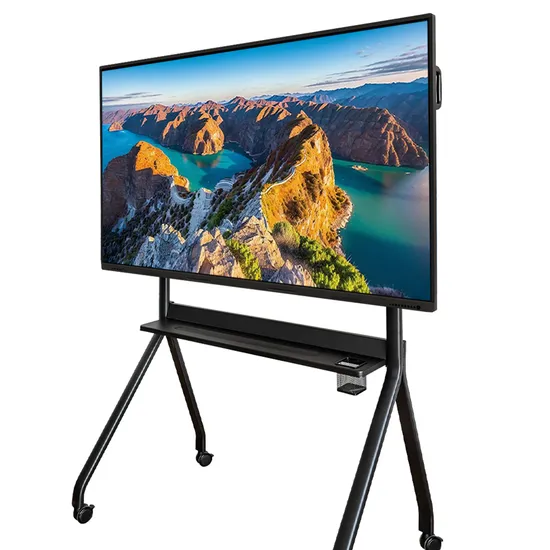

MiBoard IFP V14.V4 is an interactive touch screen, which uses infrared technology. It replaces projector and traditional interactive whiteboard. It creates smooth and natual writing experience. Dual OS, Windows and Android
Users can switch between Windows and Android OS freeely. It uses 8 cores A55 CPU, it has greatly improved the performance. User can run all kinds of app smoothly.
Integrated TranScreen Software
Transcreen defaultly supports mirroring Windows, Android to IPF up to 4 screens at the same time. It can customize up to 9 screens.
It allows students to share theirthoughts and ideas wirelessly from their portable devices (laptop or Smart Phone). Audience or students can remote control the IFP from their laptop or smart phone.
Mirror mobile phone by NFC easily
Users just need to install the Transcreen app in the mobile phone, and then close to the NFC, it will mirror mobile phone to IFP directly.
Multi-Users Management
Manage multiple users with support for up to 5 individuals, each enjoying customized options.

Integrated with DMS Remote Management APP, Manager can remote manager MiBoard IFP from anywhere. It can save a lot of time and money to do some maintain. Manager can remote manage the IFP apps, and also can remote install or uninstall app for the IFP. Manager can remote control the deskop of IFP, changing wallpaper, setting schedule for turning on or off and so on.
Intergrated with strong Whiteboard Software
Four students can write on the board at the same time without effecting with each other.
Dual thick tips of stylus With dual tips of stylus, teacher can write two colors with different thickness by the stylus. Product Parameters

Item	Description	IFP75
Panel	Diagonal Size	75"
	Backlight Type	D-LED
	Aspect Ratio	16:09
	Resolution	3840*2160
	Brightness(typ)/(min)	350
	Display Size(mm)	1,652*930
	Contrast Ratio (typ)/(min)	5000:1
	Response Time(typ)/(min)	5ms
	Depth of Color	10 bit
	Viewing Angle	178°
	Life time	≥100,000 hours
Touch	Touch Technology	High-precision Infrared Technology
	Glass	4mm Anti-glare toughened glass
	Touch Points	40 Points (option:50 points)
	Touch Accuracy	≤1mm
	Response time	<8ms
Android	CPU	8*A55 1.5Ghz
	GPU	Quad-core MaliG52 600MHz
	RAM	4GB/8GB (option)
	eMMC	32GB/128GB (Option)
	LAN	Wired LAN: RJ45 IN 100M
	Version	Android 14.0
	Wi-Fi	Wi-Fi 5 2.4G+5G+Bluetooth5.0
	Chipset	GK6760V100
Video Input	HDMI	MAX 3840x2160@120Hz
		HDMI Version 2.0
		HDCP Version 1.1/1.3/1.4/2.2
Power	Power Supply	110-240V 50/60 Hz
	Power Consumption	≤270W
Ports	Back Side Ports	HDMI In*1, USB2.0*1, Touch Out*1, TF Card*1, RS232*1, RJ45 In*1, COAX*1, LAN IN*1.
	Front Ports	HDMl IN*1, Touch Out*1, USB 3.0*3, Type-C Full Function*1(Optional)
Size	Panel Size(mm)	1706*89*1014
	Package Size(mm)	1846*215*1180
Weight	Net Weight(KG)	54
	Gross Weight(KG)	69
Speaker	Audio Out Power 15W*2 8Ω
Camera (Optional)	4K AI Camera
Microphone (Optional)	8 Built-in High Reception Microphone
Environment	Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH, Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters.
Accessories	Remote Control*1, Power Cord*1(3m), HDMI cable(2m), Touch Cable*1 (2m), Passive pen*1, Wall mount*1
Warranty	3 years return workshop
Special Features	Built with Google Play, Enable Annotation in all Channels, Screenshot, Gesture Eraser, Smart Writing, Dual Pens with two colors writing, Video conference support H323/H265.
Components	Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen.
OPS(Optional)	i3-i7,8th/9th/10th Gen, RAM 8GB/16GB, SSD 256GB, Windows 10/11 Genius Version, Dual Band 2.4G/5G Wi-Fi , Bluetooth 4.2 , LAN 1000MB
Optional Components	Movable Stand, Webcam, Pen with two tips, OPS , Pointer, Microphone, Camera, Speaker.

Our Advantages
1.We use original grade A screen. It has not brightened dot and fleck.
2.We use original Tcom boards to make sure it has better display and better quality. The following is the third party Tcon board. It can not display as perfect as the original one and it is easy to be broken.
The following is from the third party Tcon board.
3.We can do OEM/ODM to our resellers if our customer order certain quantity. We can customize or design new carton for our customer.
4. We can customize the frame color, we can make black, grey, white, or other colors. We can customize power button shape and position. We can customize the logo and paste on the frame.
5. With physical front shortcut buttons, such as adjusting volume, main menu, setting, it will be much conevient for users.
1. 20W Subwoofer for better sound quality
2. Support 50 points touch points for Windows.
3. NFC function for locking or unlocking screen. Teacher can use NFC card or mobile phone to lock or unlock screen freely,
so that student can not operate the IFP randomly.
Users can use NFC card to Shutdown, Boot, Lock Screen, Wakeup, Unlock and Enable touch.
Workshop
Certifications
Packaging & Shipping

After Sales Service
Three years limited warranty. We always send some spare parts together with your order, and we also provide video training and online traing to our customers. We provide 7*24 hours technical support by phone, email, Whatsapp and so on. Customers will rest assure to use our product.
FAQ
1.Q: Can you do OEM/ODM to us?
A: Yes, we are factory.
2.Q: What is your minimum order quantity (MOQ)?
A: We accept any quantity of your order.
3.Q: What packaging options do you have?
A: We offer paper carton, wooden package, pallet package according to your shipment requirements.
4.Q: How long is the delivery time?
A: Normally our delivery time is about 7-10 days according to the quantity that you order. If you need urgently, we can try to delivery faster.
5.Q: What are your terms of payment?
A: We accept TT Advanced, Letter of credit, document of payment and so on.
6.Q: How do you guarantee quality?
A: We also send some spare parts together with your order. We always try to do strict QC testing and long time high temperature aging.
7.Q: Hong long is the warranty for your products?
A: We provide 3 years warranty.

---
