US$4,200.00-4,400.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Overall Dimension( Lxwxh)
2770X896X1490 mm
Max. Digging Depth
1650 mm
Max. Digging Height
2610 mm
Color
Yellow, Red, Blue or Other Color You Like
Transport Package
Wooden Package
Specification
0.8 ton, 4.5cbm
Trademark
XINIU/RHINOCEROS
Production Capacity
300 Units/Month
Product Description
Product Description
Description

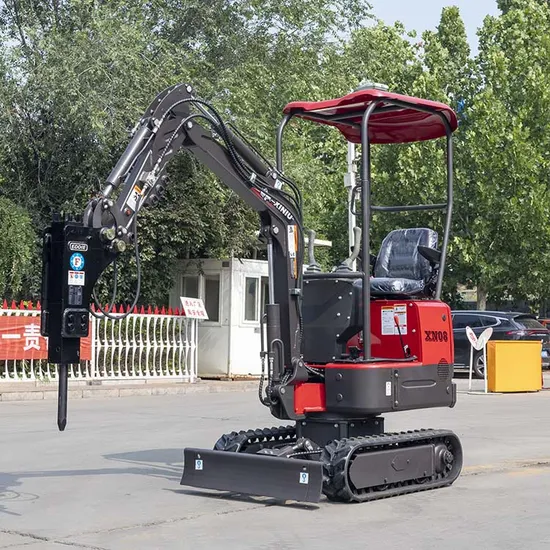

This excavator is suitable for losing soil of vegetable greenhouse, campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on.
Type
| XN08
|
Total weight
| 880KG
|
Bucket capacity
| 0.025 M3
|
Overall height
| 1330mm
|
Overall length
| 2550mm
|
Maximum dig radius
| 2650mm
|
Dig radius at ground line
| 2400mm
|
Maximum dig depth
| 1400mm
|
Dump height
| 1750mm
|
Vertical straight wall dig depth
| 1320mm
|
Lift above Dozer
| 325mm
|
depth of dozer blade
| 175mm
|
Counter weight turning radius
| 733mm
|
Arm digging force
| 4.8kn
|
Bucket digging force
| 9.2kn
|
Engine model
| Koop / changchai
|
Cooling
| air-cooling
|
System relief pressure-Standard
| 16MPa
|
You can buy many accessories
After-sale Service:
1. Our technicians will provide on-site service to customers in China. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.
2. Within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.
3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.
Packaging & Shipping
FAQ
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 12 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.
If do not have trailer,the wooden box dimension is 2.8x1.12x1.4m ,about 4.3m3;if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
>>
