Plastic High Speed Hot Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine for PVC Pipe, Window Door Profiles, Ceiling Panel, Cable Trunking, Marble Sheet

Product Description

Plastic High Speed Hot Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine for PVC Pipe, Window Door Profiles, Ceiling Panel, Cable Trunking, Marble Sheet
Product Description
Plastic High Speed Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine for PVC pipe, window door profiles, ceiling panel, cable trunking, marble sheet.
Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying. Typical application includes: production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites.
Features
All important parts (bow, mixing tool, control) are manufactured in our company, which ensure the quality of machine.
All material in contact with product is SUS304 or aluminum alloy and the product will not be contaminated.
High cooling efficiency, short mixing time, easy and convenient to clean high output.
Mixing tool can be designed according to different application.
Mixing tool coated with wear-resistant material, which can increase service life and past dynamic and balance test, running smoothly.
Rapid, perfect after-sales service.
HIGH-SPEED MIXER:

Model	Volume/L	Effective volume/L	Motor power/kw	Rotating speed/rpm	Heaing mode	Discharging mode
SHR-10	10	7	3	600-3000	Self-friction	Manual
SHR-50	50	30	7/11	750/1500	Self-friction	Pneumatic
SHR-100	100	75	14/22	650/1300	Self-friction	Pneumatic
SHR-200	200	150	30/42	475/950	Self-friction	Pneumatic
SHR-300	300	225	42/55	460/920	Self-friction	Pneumatic
SHR-500	500	370	55/75	430/860	Self-friction	Pneumatic
SHR-800	800	500	110	0-740	Self-friction	Pneumatic
SHR-1000	1000	700	160	0-660	Self-friction	Pneumatic
SHR-1300	1300	1000	200	0-660	Self-friction	Pneumatic

Remarks: all information above is only for reference; pls feel free to contact us for the accurate data.

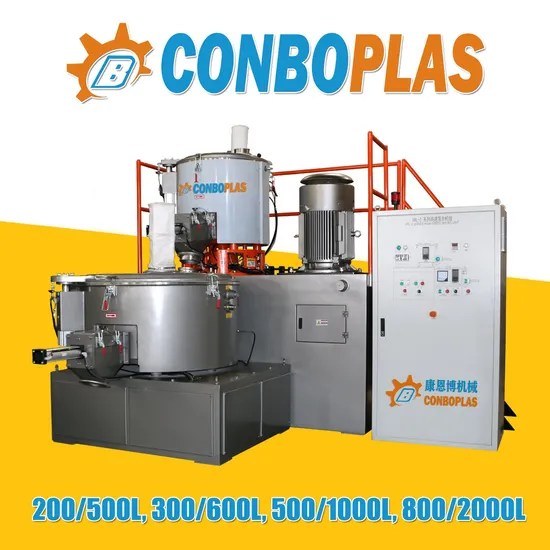

VERTICAL HIGH-SPEED MIXER UNIT:

Model	Volume/L	Effective volume/L	Rotating speed/rpm	Motor power/kw	Discharging mode	Weight/kg
SRL-Z200/500	200/500	150/320	460/920	30/42/11	Pneumatic	3500
SRL-Z300/600	300/600	200/360	475/950	40/55/11	Pneumatic	3800
SRL-Z500/1000	500/1000	375/650	475/950	75/18.5	Pneumatic	5800
SRL-Z800/2000	800/2000	600/1500	370/740	110/30	Pneumatic	8500

Remarks: all information above is only for reference; pls feel free to contact us for the accurate data.
HORIZONTAL HIGH-SPEED MIXER UNIT:

Model	Total volume/L	Effective volume/L	Output/kg/h	Shaft speed/rpm	Motor power/kw	Unloading method	Weight/kg
SRL-Z500/1000	500/1000	375/660	800-1000	0-860	75/18.5	Pneumatic	7800
SRL-Z800/2000	800/2000	560/1280	1300-1500	0-660	110/30	Pneumatic	9500
SRL-Z1000/3000	1000/3000	750/2240	1800-2000	0-650	160/37	Pneumatic	12000
SRL-Z1300/4500	1300/4500	1000/3300	2000-2500	0-600	200/55	Pneumatic	14000

Remarks: all information above is only for reference; pls feel free to contact us for the accurate data.
Certifications
Machining Equipment
Packaging & Shipping
More Products For Option
HORIZONTAL WOOD PVC MIXER MACHINE
PVC WATER PIPE PRODUCTION LINE, PVC DRAINAGE PIPE PRODUCTION LINE
PVC WINDOW DOOR PROFILES PRODUCTION LINE
HDPE WATER PIPE PRODUCTION LINE
PVC PULVERIZER, PVC MILLER
FOR MORE DETAILS, PLS FEEL FREE TO CONTACT US. THANKS!

---
