| Range of working temperature : | Room temperature to 500ºC(adjustable) | Electric control box: | Left position of oven | |
| Precision of temperature control : | ±1ºC% | Using pressure: | 3N+PE/380V/50HZ | |
| Uniformity of temperature: | ±2ºC%(no-load condition) | Heating power: | 12KW | |
| Temperaure for usring common: | Room temperature to 100ºC | Power for air blow: | 750W*1PC(380V) | |
| Chamber size: | 1000*1000*1000 | Can be customization | ||
| Size outer: 1200x1200x1400 mm L W H | ||||
| General instruction : | ||||

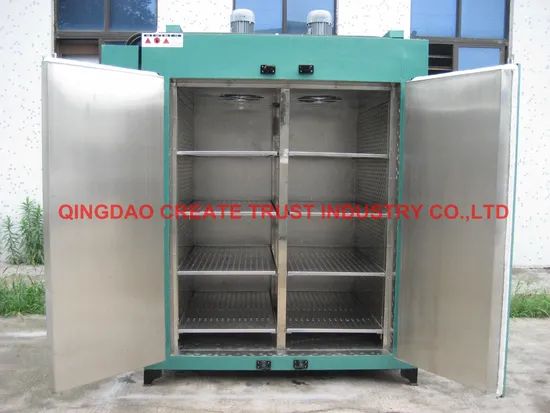

| Our oven is specially designed by strong air blow circle system, this make sure the temperature steady. And Digital display temperature control can keep high precision and easy reading. The outer material of oven is made by cold-roll steel sheets,baking varnish. Very strong and good looking. The inner layer is made by stainless steel,thickness 1.5 mm, Sheet metal bending and welding. The hot air circle design : the hot air is out from left and right side,middle indraft. Circle like this. The heating element is set in the air channel both left and right side. The motor is set on the top of oven. This design will make longlife use of both motor and elements. Also the door is sealed by silicone rubber sheets,very solid. | ||||
| Material for the body of oven: | ||||
| Outer shell material: | 1.5 mm thickness of cold-roll steel sheets,baking varnish. bending and welding,finally polising process.. | |||
| Framework : | Q235,14# welded. | |||
| Inner material: | stainless steel,thickness 1.5 mm, Sheet metal bending and argon-arc welding. | |||
| Air handling pannel: | Stainless steel with thickness 1.5 mm | |||
| Sealing for the door : | Silicone rubber door curtain sealed heat preservation | |||
| insulating layer: | Deign thickness 100mm,and fill material 100K grade High-density aluminum silicate fiber.1000ºC high temperature resisitant,heat conductivity coefficient is 0.0048 ∧m/ºC | |||
| Air inlet and exhaust system: | ||||
| Air inlet tube: | The air inlet tube is installed at the bottom of oven. | |||
| Exhaust tube: | One hole with size 150mm for air exhaust, it is on the top of oven. You can connect the tube to let air out of workshop. | |||
| Circle system: | ||||
| Method for air circle: | Forced horizontal method for air circle sending.The principle is the hot air can be blowed into the air channel left and right by Centrifugal circulation fan. Then the air will be indrafted by the middle channel. The temperature will be very uniform. | |||
| Wind turbines material | Wind turbine blade stainless steel with size 305*160mm | |||
| Heating system: | ||||
| Heating element material: | Professional manufacturer of heater,brand DRIK, High temperature stainless steel U heater, on the top inside of oven. | |||
| Quality of heater: | 16 pcs of heater,and the life can be more than 30,000 hours. | |||
| Electric parts:(the brand you can formulate too) | ||||
| Teamperature controller: | Intelligent dual micro computer controller,precision is ±2ºC. With PID adjustment.Automatic constant temperature function. Brand :Japan Fuji | |||
| Time setting device: | HS48S-99.99 Timer,manual or automatic switch. Automatic control after you set it. | |||
| temperature measuring equipment: | 2 pcs of stainless Platinum resistance temperature sensor.precision is ±2ºCFS | |||
| sound-light alarming device: | APT/AD16 type,sound-light alarming device. When it reach the time or temperature overheat,the alarm will warning. | |||
| Safety protection system: | Include shutoff protection,motor overload protection,temperature overheat protection and Phase sequence protection device ect. | |||
