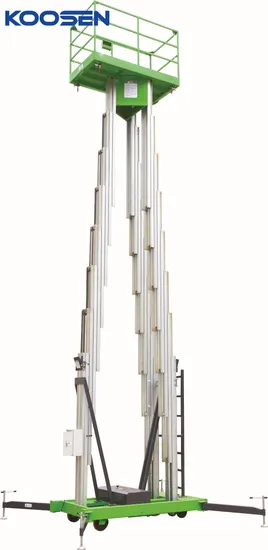

14m Three Mast Aluminum Electric Vertical Fruit Picker Lift Platform

Product Description

Product Description
GTWY14-2000/GTWY12-2000/GTWY10-2000/GTWY9-2000/ GTWY8-2000/ GTWY6-2000
Main spec.
Working height:14m,12m,10.00m,9m,8m&6.00m
S.W.L:150kg,200kg
Important features
self-leveling outriggers with sensor system, LED display, safe and reliable
automatic lifting platform system to reduce machine height and easy to store
AC/DC Power system optional
Cylinder holding valve
Product Parameters

Model	AWP14-3000	AWP12-3000	AWP10-3000
Working height	16.00m	14.00m	12.00m
Platform Floor Height	14.00m	12.00m	10.00m
Overall Length	1.92m	1.82m	1.82m
Overall Width	1.10m	1.10m	1.10m
Overall Height	2.40m	2.28m	2.08m
Outrigger Footprint(L/W)	2.5m/2.4m	2.33m/2.23m	2.33m/2.23m
Platform Size(Length/Wide)	1.60m×0.88m	1.43m×0.88m	1.43m×0.88m
Ground Clearance	0.15m	0.15m	0.15m
Wheel Base	1.51m	1.51m	1.51m
Performance
Model	AWP14-3000	AWP12-3000	AWP10-3000
S.W.L	250kg	300kg	300kg
Max. Occupants	2	2	2
Up/Down Speed	112/102sec	100/90sec	88/78sec
Tyres(Back Wheels)	8in	8in	8in
Tyres(Front Wheels)	7in	7in	7in
Power
Model	AWP14-3000	AWP12-3000	AWP10-3000
Lifting Motor(AC)	110/230VAC/2.2kW	110/230VAC/2.2kW	110/230VAC/2.2kW
Lifting Motor(DC)	12VDC/2.2kW	12VDC/2.2kW	12VDC/2.2kW
Betteries	2×12V/120Ah	2×12V/120Ah	2×12V/120Ah
Integrated Charger	24V/12A	24V/12A	24V/12A
Weight
Model	AWP14-3000	AWP12-3000	AWP10-3000
Weight	1100kg/1140kg	1050kg/1080kg	1000kg/1030kg

Detailed Photos
Recommand


Exhibition

Packaging & Shipping
FAQ
1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths. 5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L. 6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements. 7.Q:Are you factory? Yes,we have our own factory. 8: Can I visit your company? Of course at anytime. 9, Do you support customization? Yes.We not only provide standard products,but also support customized products.

---
