| US$10,000.00-12,000.00 | 1 Set (MOQ) |

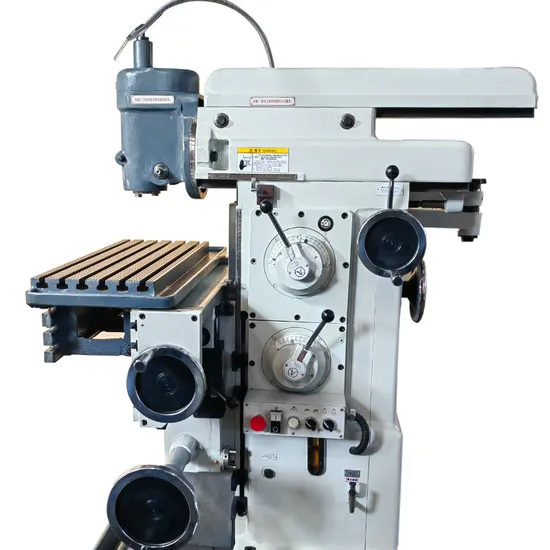

| X8126A UNIVERSAL MILLING MACHINE Technical Parameters | |
| Item | Details |
| Table area(long*wide) (mm) | 700*280 |
| Distance from horizontal spindle centerline to table surface | First installation position 35-385mm Second installation position 42-392mm Third installation position 132-482mm |
| Longitudinal stroke of table (mm) | 350 |
| Lifting stroke of table (mm) | 350 |
| Table feeding steps | 8 steps |
| Table longitudibal and lifting feed range | 25-285mm/min |
| Table speed of vertical and vertical rapid movement | 1000mm/min |
| Number of T-slot | 6 |
| Width of T-slot (mm) | 14 |
| Distance of T-slot (mm) | 45 |
| Spindle taper of X8126A | 7:24 ISO40 |
| Lateral movement stroke of spindle (mm) | 200 |
| Travel per revolution of the dial (mm) | 1.5 |
| Spindle speed steps | 8 |
| Spindle speed range | 110-1230r/min |
| Spindle feeding steps | 8 |
| Spindle feed range | 25-285mm/min |
| Spindle tapper | 7:24 ISO40 |
| Manual axial movement of the spindle (mm) | 80 |
| The movement of each grid on the dial (mm) | 0.5 |
| Spindle body rotation angle | -45 |
| Spindle speed level | 8 |
| Spindle speed range | 150-1660r/min |
| Distance from the centerline of the horizontal spindle to the lower plane of the upper beam (mm) | 96 |
| Distance between the centerline of the horizontal spindle and the upper plane of the horizontal table (mm) | 35-285 |
| Distance from the front edge of the horizontal table and the front plane of the vertical guide rail of the bed due to different installation positions (mm) | 212-412 |
| Distance between the centerline of the vertical spindle and the front plane of the vertical guide rail of the bed (mm) | 155 |
| Distance between the lower and face of the vertical spindle and the plane on the horizontal table (mm) | 0-285 |
| Total power capacity (KVA) | 4 |
| Main motor power (kw) | 3 |
| Main motor speed (r/min) | 1430 |
| Cooling water pump motor (w) | 40 |
| Machine tool dimensions (long*wide*high) (mm) | 1450*1445*1650 |
| Net weight and Cross weight of machine tool (kg) | X8126&XS8126: 1180 1400 X8126A&XS8126A:1200 1400 |
