Basic Info.
Automatic Grade
Automatic
Packaging Size
840*520*900mm
Video Factory Inspection
Provided
Mechanical Test Report
Provided
Transport Package
Wooden Box
Specification
840*520*900mm
Production Capacity
500 Per/Month

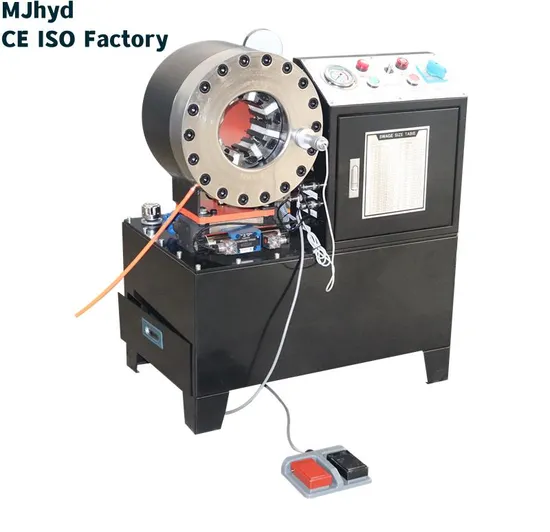

Product Description
Crimp inner diameter | 4-51mm |
Crimp outside diameter | 6-80mm |
Max open | 115mm |
Crimping force | 560T |
Rated pressure | 31.5 MPa |
Power of motor | 3kw/4kw |
Scale accuracy | 0.01mm |
Voltage | 380V/220V/415V/230V or customize |
Oil pump out-let quantity | 5L/10L |
Dies mould | 10sets |
Operational way | foot control,button control,automatic |
Dies number | 15. 19. 23. 26. 31. 36. 41. 47. 55. 63 or customize |
This machine supports crimping various types of products, such as hydraulic hose, air conditioning hose, air suspension, brake hose, cable, steel pipe, steel wire rope, and so on.
You can tell us the product you want to crimp, and we will provide professional and suitable solutions for you.
Oriental MJ Hydraulic Machinery(Tianjin)Co.,ltd has always been committed to the research and development of Hydraulic hose& Tubing Processing Equipment, high and low pressure rubber hose, fitting joints, etc.,
More than 18 years, offering customized solutions gained from research, precision and quality.
All our products are manufactured in compliance with CE ISO standards, and ensure quality, innovation and safety.The main equipment are manufactured by germany and Japan,specifically set up for this purpose, making it a critical piece to MJhdraulic consistent quality.
>>
