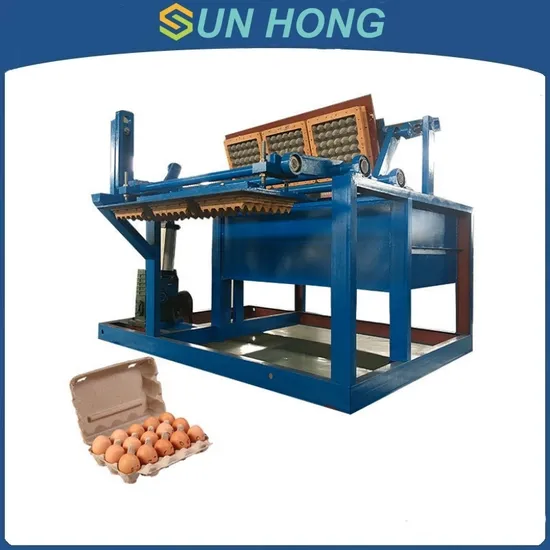

Egg Tray Machine for Waste Paper Pulp Moulding Plant
US$5,000.00-8,000.00
1 Set
(MOQ)
Basic Info.
Application
Food
Drying Function
With Drying Function
Automatic Grade
Automatic
Computer Control Panel
Computer Control Panel
Size
Medium
Certification
CE
Condition
New
Capacity
1200-1500 Pieces/H
Transport Package
Wooden Case
Specification
customized
Trademark
SUN HONG
Origin
China
HS Code
84399900
Product Description
Egg Tray Production Line from Pulping to Forming Sun Hong supply the whole egg try production line. One hour can produce 1200-1500 pieces egg tray. Pulp Making Line Various kinds of waste paper will be put into the pulping machine, and after about 20 minutes of high-concentration mixing, the pulp will be automatically transported to the pulp storage tank for storage and mixing. Then it is transported to the pulp mixing tank by the pulp supply pump and stirred to the required pulp consistency, and then transported to the moulding machine. Forming Process 1. The moulding machine adsorbs the pulp from the pulp supply pump to the moulding machine hopper onto the mould of the moulding machine, and the excess moisture is sucked to the sewage tank through the suction of the vacuum system to adsorb the pulp onto the mould of the moulding machine. 2. The forming machine moulds adsorb the pulp and then form the finished product which is taken out by the forming machine manipulator. Finished Products
