Affordable Small Excavator with 1300mm Depth for Garden Projects

Product Description

Product Description

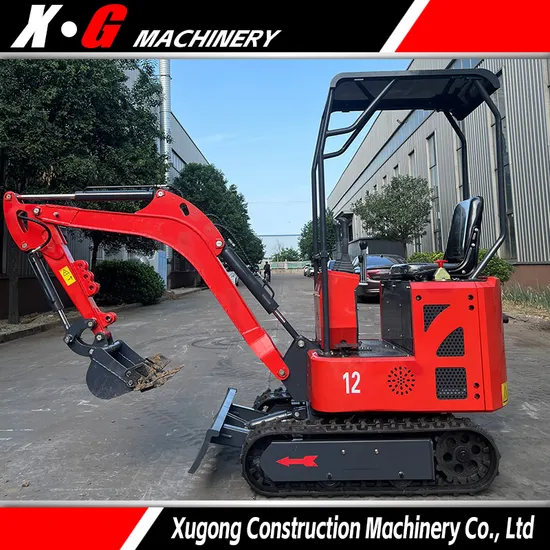

Introducing our latest marvel, the Efficient Mini Shandong Excavator with 1300mm Depth for Gardens. This cutting-edge piece of machinery promises an unparalleled blend of stellar innovation and robust durability. Crafted with a formidable track system, it effortlessly conquers a myriad of challenging terrains, proving its mettle. Ideal for construction sites, lush farmlands, or picturesque garden landscapes, this excavator performs with exceptional finesse, making it an indispensable tool in your arsenal.
Beneath its compact and elegant exterior lies an extraordinary powerhouse of digging prowess. Our excavator is engineered with precision control, enabling the seamless execution of intricate tasks like digging, leveling, and loading with unmatched ease and accuracy. Its low noise and minimal emissions make it an exemplary environmental ally, perfect for urban construction projects that demand quiet and eco-friendly operations, setting a new standard for sustainable machinery.
Experience simplicity and high performance in operation with our state-of-the-art control system. It offers intuitive handling of excavation depth and force, ensuring you master every project with confidence and ease. Coupled with a high-efficiency power system, this excavator guarantees rapid and efficient completion of tasks, significantly reducing both time and labor expenses, while enhancing productivity like never before.
Product Introduction
Product Parameters

XG-08 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.025
Engine model	Science Popularization/Changchai 192
Working weight	KG	636
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	2450
Maximum excavation depth	mm	1300
Maximum excavation height	mm	2350
Maximum unloading height	mm	1600
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	120
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	780
Overall height	mm	1390
Total length	mm	2430
Minimum ground clearance	mm	80
Track grounding length	mm	1140
track width	mm	150

XG-09 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.025
Engine model	Science Popularization/Changchai 192
Working weight	KG	636
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Arm side swing	°	Left 50, right 40
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	2450
Maximum excavation depth	mm	1300
Maximum excavation height	mm	2350
Maximum unloading height	mm	1600
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	120
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	780
Overall height	mm	1420
Total length	mm	2430
Minimum ground clearance	mm	80
Track grounding length	mm	1140
track width	mm	150

XG-10 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.03
Engine model	Science Popularization/Changchai 192
Working weight	KG	758
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	2450
Maximum excavation depth	mm	1410
Maximum excavation height	mm	2420
Maximum unloading height	mm	1650
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	120
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	880
Overall height	mm	1460-2000
Total length	mm	2430
Minimum ground clearance	mm	80
Track grounding length	mm	1140
track width	mm	150

XG-12 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.03
Engine model	Science Popularization/Changchai 192
Working weight	KG	900
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	16
Rotation speed	Rpm	13
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	20
Scope of work
Maximum excavation distance	mm	3077
Maximum excavation depth	mm	1787
Maximum excavation height	mm	2550
Maximum unloading height	mm	1687
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	132
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	850
Overall height	mm	1535-2200
Total length	mm	2876
Minimum ground clearance	mm	132
Track grounding length	mm	900
track width	mm	150

XG-15 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.03
Engine model	Science Popularization/Changchai 192
Working weight	KG	1580
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	3700
Maximum excavation depth	mm	1300
Maximum excavation height	mm	3300
Maximum unloading height	mm	1980
Minimum turning radius	mm	1660
Maximum ground clearance of bulldozer shovel	mm	495
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	980
Overall height	mm	2120
Total length	mm	3685
Minimum ground clearance	mm	200
Track grounding length	mm	1410
track width	mm	230

Scene shooting
Other
FAQ
At Jining Xugong Construction Machinery Co., Ltd., we take immense pride in delivering a diverse array of construction machinery, meticulously engineered to meet your precise requirements. Our products are designed to be durable, efficient, and reliable, enabling you to tackle even the most demanding projects with utmost ease.
Key Features: For your convenience, we offer a variety of payment options including Western Union, PayPal, letter of credit, and wire transfer. Our flexible trade methods, with FOB as the standard option, are customizable to fulfill your specific needs. Primary shipping is conducted via sea transportation, with dedicated customer service available to address any special shipping requirements. Benefits: Enjoy the ease of multiple payment options for seamless transactions. Benefit from adaptable trade methods tailored to your business preferences. Leverage our efficient shipping solutions for timely deliveries. Opt for Jining Xugong Construction Machinery Co., Ltd. for exceptional-quality products and unparalleled service in the construction machinery sector.

---
