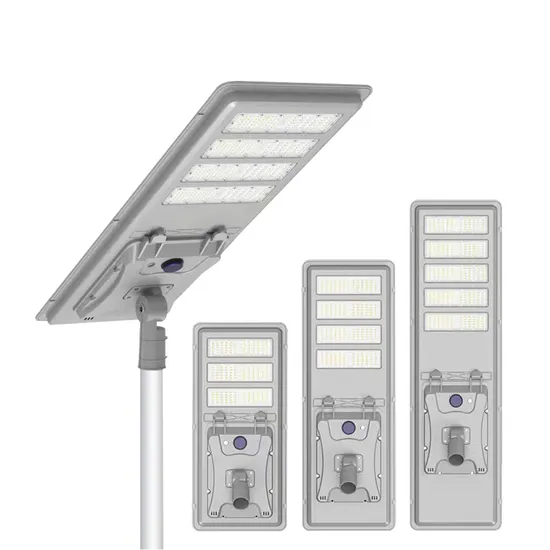

All in One 240W LED Integrated Solar Street Light

Product Description

All In One Solar Street Light

User Manual
*Top Manufacturer of the world
*No need electricity
*Easy installation
*Longer lifetime
Sincerely thank you for using All In One Solar Street Light
Solar Street Light make full use of energy from the sun - mono solar panel with high efficiency, LED source, intelligent controller, lithium battery are all in one. It uses excellent practical control technology such as controller with micro radar sensor, human infrared induction/PIR sensor, etc., combined with a simple integrated structural design, perfect for achieving higher brightness and lower power consumption (average 15W power = 200W incandescent lighting ), Long lifespan and free maintenance, strong waterproof and heat dissipation, and easy installation. All advantages make it be our company's best patented product.
Parameters

Model No.	DX-SSL-Y
Light Source	100W	180W	240W
Capacity	3.2V 25AH	3.2V 30AH	3.2V 40AH
Solar Panel Power	6V 30W	6V 40W	6V 50W
Solar Panel	high efficiency monocrystalline	high efficiency monocrystalline	high efficiency monocrystalline
Human Induction (PIR Sensor)	Yes	Yes	Yes
Product Size	552X282X130mm	657X325X130mm	860X350X130mm
Net Weight	3.5Kg	4.6Kg	5.9Kg
Holder (mm)	60mm
Lighting Angle	70 X140°	70 X140°	70 X140°
Color Temperature	6000k-6500k	6000k-6500k	6000k-6500k
Packaging	570X350X235mm	670X395X235mm	910X410X280mm
Working Time	≥24Hr	≥24Hr	≥24Hr
Working Temperature	Charging: -20°C~+60°C Discharge: -20°C~+60°C Storage Temperature: 0°C~+45°C
Recommended Mounting Height	5-6m	6-7m	7-8m
Recommended Mounting Distance	15-20m	20-25m	20-25m

Attention Issues
1."All-in-one Solar street light" will not work without sun. Please choose the matched model according to the local Sunlight intensity or the total annual radiation of solar energy. In the area of lacking sunlight or in long continuous rainy days, the working time of solar lights would be shortened or can not light up, All-in-one light with mains supply or solar dual-mode electric power supply is suggested to choose in such cases.
2. "All-in-one Solar street light" selects long life span lithium battery as energy storage device. Discharge condition at night is at temperature - 20ºC ~ + 75ºC, battery performance will be damaged beyond this range. Please make sure the local extreme temperature does not exceed the above condition when choosing the "All-in-one models".
3."All-in-one Solar street light", after fully charged, the battery longest store time can be up to six months. Check the battery in time after long time transport or storage, charge and record it on a regular time. Otherwise, the battery will be damaged.
4.When installing "All-in-one Solar street light", make the solar panel towards the direction of the sun as far as possible in order to get maximum energy and meanwhile avoid houses or the shadow of obstacles such as trees, otherwise it will reduce the generating efficiency of the solar panel, and due to a shorten working time.
5."All-in-one Solar street light", the clean-up performance of solar panel surface also affects the generating efficiency of the solar panel. So its surface needs to be cleaned, such as dust, leaves, greasy dirt, etc., scrubbed with ordinary cleaner on a regular time is suggested.
6."All-in-one Solar street light", its internal parts are with good waterproof design, all reach IP65 standard. Ventilation holes and cracks on the shell are specially designed for the cooling and drainage. Metal parts are all made of corrosion resistance aluminum or stainless steel, which can tolerate the strict environment of the sea or high heat and high humidity desert.
Installation steps
Maintenance
(1) Solar controller is the core component of solar street lights, which has the function of light control, time control, charging and discharging, etc. Keep it dry in use, and do not touch the buttons at discretion. Malfunction must operate in professional instruction.
(2) Solar panel is the longest life span component in the solar street light, which can be used for 35 years. And in use if it doesn't rain for days, the surface of the solar panel will gather much dust, which will affect the power generating efficiency, need manual cleaning when necessary. Keep the solar panel towards the south, correct it timely if there is swing.
(3) LED light source has a long service life, general failure rate is extremely low. Dirt cleaning of the whole light source is needed when using 2 to 3 years in case the dirt resists electricity and reduce the brightness of lights.
(4) The battery itself has certain self-discharge, when the All In One Solar Light is not in use for a long time, please take out the light regularly for charging in the sun.
Trouble Shooting

	Cause	Inspection methods	Solution
Lights not work	Switch does not turn on	Check whether the switch turns on	Turn on the switch
	Switch failure	Make the switch short circuit, if it is still lighting up, could judge the switch failure.	Replace Switch
	Battery runs out	Long rainy day or wrong installation site could not charge enough power. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, then could judge battery runs out or low power cause system could not work.	Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery.
	LED Failure	Firstly, adjust the DC power supply to voltage 9V and current less than 1A, then connect the positive and negative electrode of DC power supply to LED, if LED could not light, could judge LED failure.	If confirming LED failure, please contact us to return and replace.
Short lighting time	Low battery	Wrong installation or dust and leaves cover on solar panel cause not enough solor power to battery. 1. Check whether there is dust or leaves covering on the solar panel. 2. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, that could judge battery runs out or low power cause system could not work.	1. Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. 2. Clean the solar panel.
	Battery Failure	Open the light and check if battery is dispalced or outer has been damaged . Battery maturing, lights used more than 2 years.	1. If damage caused by transportation, please return to our factory for repairing or replacement. 2. Contact us to buy the same type battery if battery maturing.
No induct	Sensor Failure	Move in the range of detection under the half power lighting condition, if light not turns to full power ,could judge the sensor failure.	If confirming failure caused by controller or sensor, please return to our factory for repairing or replacement.
Flashing light	Controller (timer) setting wrong	Intelligent mode opens due to an exceeding output power of the controller and light flashing.	Return to our factory to reset or replace the products.

---
