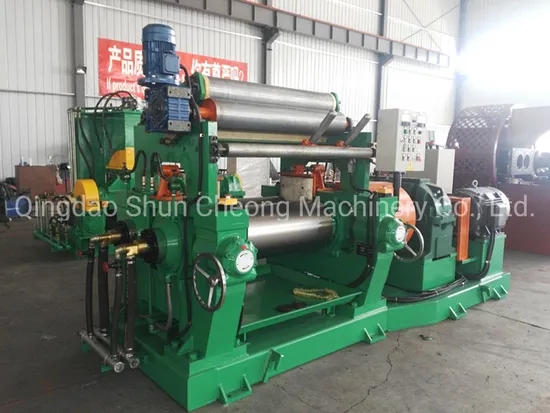

Rubber Mixing Machine, Two Roll Mill, Rubber Mixing Mill

Product Description

Rubber Mixing Machine, Two Roll Mill, Rubber Mixing Mill
Features:
1. Tailored and compact structure, easy to operate.
2. There are many speeds and speed ratios of our rubber mixing mill for your options, which can satisfy most customers' formula and processing requirements
3. Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
4. Rubber Mixing Mill's chilled alloy cast iron roll is abrasion resistant with long service life. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of personnel and equipment.
6. The seal structure of Rubber Mixing Mill with special design can eliminate the leaking phenomenon of lubricating oil.
7. Stock pan is easy to clean up with dislodging device
8. Human nature designed operating system reduces labor intensity.
9. Modular structure offers various structures for customers' option.
10. The flexible design system can satisfy customers' special design requirements within the shortest time...
11. A load test will be made to the assembled equipment in our company to save debugging time for customers...
Technical Parameters:

	Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roll diameter	mm	160	250	360	400	450	550	560-510	660	710
Roll working length		320	620	900	1000	1200	1500	1530	2130	2200
Front roll linear speed	r/min	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
Speed ratio of rolls		01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
Max roll space	mm	4.5	8	10	10	12	16	15	0.5-15	0.5-15
Compound feeding capacity	kg	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
Motor power	kW	5.5	18.5	30	45	55	110	90	240	280
Dimension
L	mm	1133	2722	4200	4920	5405	6646	6270	7280	8185
W	mm	920	1115	1780	1780	1740	2736	2282	3400	3910
H	mm	1394	1345	1760	1800	1790	2105	2000	2530	2270
Gross weight	T	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51

Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
Our Services
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.

♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.

♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.

♦ We supply overseas engineer service and help to train your workers to operate the machine.

---
