Bottle Blow Molding Machine Newamstar

US$300,000.00-1,000,000.00 1 Set (MOQ)

Basic Info.

Model NO.

RBM

Raw Material

PET

Making Method of Parison

Stretch Blow

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

After-sales Service

24-Hour Service

Packaging Material

Wood Case

Capacity

12000-80000bph

Application

Beverage, Alcohol, Condiment

Transport Package

Bottle

Specification

CE, UL, SGS, ISO, FDA

Trademark

Newamstar

Origin

Zhangjiagang, Jiangsu, China

HS Code

842230

Production Capacity

150sets/Year

Product Description

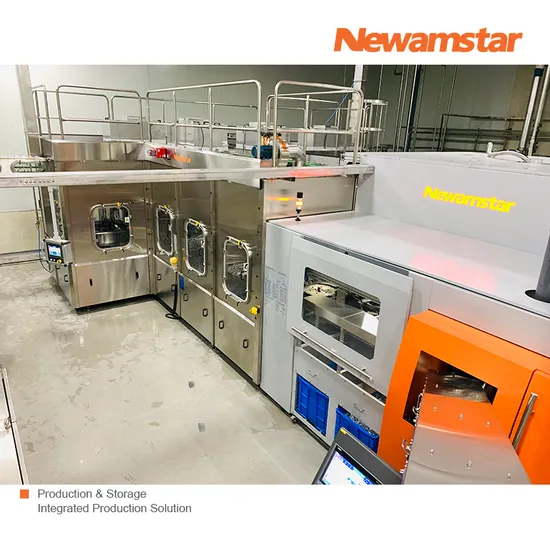

0.25-6L Rotary Blow-Molding Machine
Basic information
To meet the market's requirement that the blowing molding machine should be high speed and energy saving, Newamstar develops fully automatic rotary blow molding machine, mainly for the PET bottle of drinking water, CSD and the heat-resistant bottle.
It is mainly combined of 5 parts, preform hopper, preform lifter, preform sorter, heater and blowing machine.

Series	Capacity	Volume	Application fields
Standard mould holder	12000-36000 BPH	0.25-2.5L	Beverage Alcohol (rice wine and white sipirit, etc) Condiment(edible oil, vinegar and soy sauce, etc) Household care products (detergent, shampoo, etc)
Medium mould holder	14400-48000 BPH	0.25-2L
Small mould holder	28800-80000 BPH	0.25-0.7L
Large mould holder	2000-8000 BPH	3-6L

Product production Procedure
Preform Lifting
Preform Sorting
Preform Supplying
Preform Loading
Preform Heating
Preform Leaving the heater
Gripper Transferring Preform
Preform Entering Mold
Preform is stretched and huffed
Preform comes from mold
Gripper transferring preform
Transporting Bottles
Advantages
1 be highly intelligentized
2 reasonable structure
3 high efficiency
4 lower power consumption
5 flexible blowing process
6 simple operation
7 achieve national food sanitation standards
Features
1, TFT touch screen HMI enables all-around control of production process
2, Stable infrared heating system and independent heat balance adjusting device
3, The heater adopts 9-section type infrared temperature adjusting control. Each group of heating lamps in pre-heating zone and adjusting zone can be controlled and adjusted separately according to technical requirement
4, The specially designed two-time blowing system has real-time monitoring to the pressure variation curve during the molding process of each cavity,
5, The parameters as heating temperature and blowing time could be set according to customer's preform and bottle shape.
6, The equipment uses fully close transparent windows structure with safety door syste

Name	Model	Capacity
Full Automatic Rotay Blow-Molding Machine	RBM24A-00	36000BPH
Full Automatic Rotay Blow-Molding Machine	RBM24MB-00	36000BPH
Full Automatic Rotay Blow-Molding Machine	RBM14-00	12000BPH
Full Automatic Rotay Blow-Molding Machine	RBM10C-00	18000BPH
Full Automatic Rotay Blow-Molding Machine	RBM20ME	40000BPH
Full Automatic Rotay Blow-Molding Machine	RBM6D-00	6000BPH
Full Automatic Rotay Blow-Molding Machine	RBM6H-60	7500BPH
Full Automatic Rotay Blow-Molding Machine	RBM6D	6,000BPH(5.0L)
Full Automatic Rotay Blow-Molding Machine	RBM8	12,800BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM8M	14,400BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM10	16,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM10M	18,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM10H	12,500BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM12	19,200BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM14M	24,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM14	22,400BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM14H	17,500BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM16	25,600BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM16M	28,800BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM20	30,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM20M	36,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM20H	25,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM20S	36,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM24M	40,800BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM24S	43,200BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM30S	51,000BPH(0.6L)
Full Automatic Rotay Blow-Molding Machine	RBM40S	72,000BPH(0.6L)

Main Products:

Beverage Processing System		System	Equipment	Design capacity
		Water Treatment System	Pre-filtration System\Membrane Separation System\Sterilization System	5-100 T/hr
		Processing System	Dissolving Unit\Extraction Unit\Fermentation Unit\Blending Constant Volume Unit	5-60 T/hr
		Processing System	UHT System\CIP System\ Disinfectant System\Carbon Mixer

Packaging System	System		Equipment	Design capacity
	Blow Moulding System		0.25~15L	1200-81000 BPH
	Filling System		Water Filling\Aseptic Filling\Ultra-clean Filling\Hot Filling\CSD Filling	1200~81000 BPH
	Combibloc		Starbloc\(Big)Bottled Water Combibloc\Aseptic Combibloc\Ultra-clean Combibloc\CSD Combibloc\ Hot-fill Combibloc\ Non-beverage Combibloc	1200-81000 BPH
	Conveying System		Air Conveyor\ Bottle Unscrambler\ Bottle tilting chain\ Showering Cooling Tunnel\ Bottle Warmer\ Bottle(Case, Pallet) Conveyor	5000~81000 BPH

External Packing System		System	Equipment	Design capacity
		Film Wrapper	Transparent\Colorful Film	60~120 box(case)/min
		Carton Packer	Robot Packer\ Wrap around packer	60~120 box(case)/min
		Bottle(Can) Palletizer(Depalletizer)	PET Bottle\Can\Glass Bottle	5000-72000 BPH
		Case Palletizer(Depalletizer)	Carton\Plastic Crate	5000-81000 BPH
		Labeler	Hot Glue\Self-adhesive Sticker\ Cold Glue\Pre-applied Glue	6000-48000 BPH

Internal logistics system		System	Equipment	Remark
		Intelligent Warehouse	Rail Guided Vehicle\Automated Guided Vehicle\Stacker\ Automated Loading System
		Warehouse Control System	Racking System
		Warehouse Management System	WMS combined with Enterprise's system

Management Platform for Intelligent Factory		System	Equipment	Remark
		Central Electrical Control System for Whole Line	Operation Monitoring\Data Collection\Reports\Energy Management
		Remote	24 hours customer service line\Remote diagnosis to solve technical fault quickly\Professional support & technical training
