Laboao China Pharmaceutical Chemical Laboratory Jacketed Glass Reactor

Product Description

LABOAO China Pharmaceutical Chemical Laboratory Jacketed Glass Reactor Equipment Price
Description:
Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.
Feature:
1.A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.
2.Wide range of temperature operations, from -60°C to 250°C.
3.Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.
4.The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5.Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6.Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.
8.The bottom flange discharge port with a PTFE value, aluminum parts flange fixed.

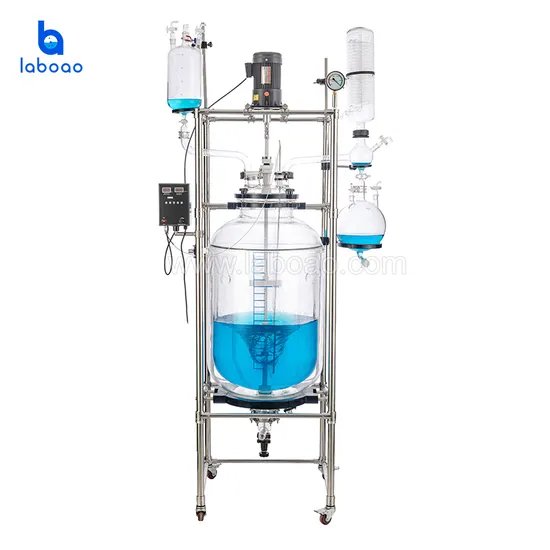

10L/20L/30L/50L/80L/100L jacketed glass reactor as below photo:
150L/200L Large Jacketed Glass Reactor as below photo (Inlcuding 10L feeding tank and receiving flask):

Model	LGR-10L	LGR-20L	LGR-30L	LGR-50L	LGR-100L	LGR-150L	LGR-200L
Glass Material	GG-17
Frame Material	304 Stainless steel
Moving mode	Brake type universal corner wheel
Reaction bottle capacity	10L	20L	30L	50L	100L	150L	200L
Jacketed Capacity	6L	8L	10L	12L	18L	23L	28L
Flanged out of the oil circulation port	Low feed high outlet
Reaction bottle cover port	6ports
Discharger port distance to ground	450mm
Temp. range	-80-250°C
Vacuum	0.098Mpa
Stirring speed	0-450rpm	0-450rpm	0-450rpm	0-450rpm	0-450rpm	0-280rpm	0-280rpm
Stirring diameter	12mm	12mm	12mm	12mm	15mm	15mm	15mm
Stirring power	90W	90W	120W	120W	250W	750W	750W
Voltage(V/Hz)	220V/50Hz
Dimension(mm)	520*520*2000	560*560*2100	760*560*2300	760*560*2450	610*610*2400	1250*850*2920	1300*900*3400
Packing size(mm)	1370*590*800	1480*660*810	1720*680*850	1720*680*850	1900*700*870	2200*930*1350	2300*930*1350
Packing weight(KG)	68	80	88	92	125	180	190

1-5L mini lab jacketed glass reactor

Model	LGR-1L	LGR-2L	LGR-3L	LGR-5L
Glass Material	GG-17
Frame Material	304 Stainless steel
Reaction bottle capacity	1L	2L	3L	5L
Jacketed Capacity	0.4L	0.5L	0.6L	0.8L
Flanged out of the oil circulation port	Low feed high outlet
Reaction bottle cover port	5 ports
Discharger port distance to ground	30mm
Temp. range	-80~250ºC
Vacuum	0.098Mpa
Stirring speed	0-800rpm
Stirring diameter	8mm
Stirring power	40W	40W	90W	90W
Voltage(V/Hz)	220V/50Hz
Dimension(mm)	350*345*1000	350*345*1000	350*410*1250	350*410*1250
Packing size(mm)	1200*480*400	1200*480*400	1380*500*400	1380*500*400
Packing weight(KG)	32	32	38	38kg
