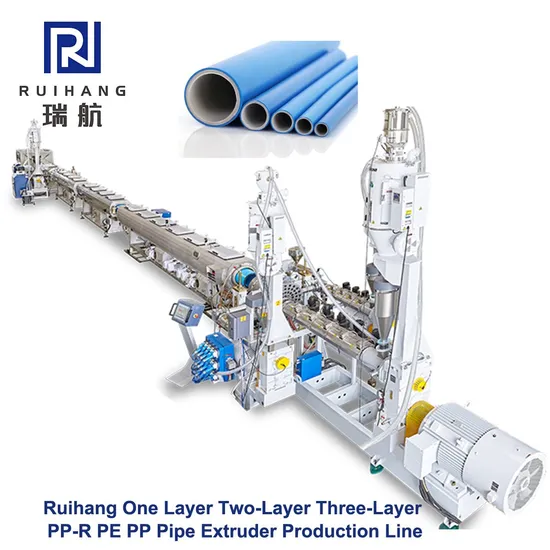

Ruihang One Layer Two-Layer Three-Layer Co-Extrusion PP-R PE PP Pipe Extruder Production Line

Product Description

Ruihang One Layer Two-Layer Three-Layer PP-R PE PP Pipe Extruder Production Line Product Description
Production line composition:
Automatic feeder, single screw extruder, mold, vacuum sizing water tank, spray cooling water tank, haul-off machine, cutting machine, stacking rack and PLC control system.
Main features of the production line:
1. The extruder has the advantages of high plasticization rate, uniform melt, and continuous production stability. High-performance gearbox reducer. High torque, long service life, and low noise.
2. Surface nitriding, after nitriding, the product has excellent wear resistance, fatigue resistance, corrosion resistance, high temperature resistance, and a long working life.
3. All parts are from well-known domestic and foreign brands.
Features and applications of the products produced:
It is a green and environmentally friendly pipe with the characteristics of hygiene, non-toxicity, no rust, no scaling, high temperature resistance, long life, and high pressure resistance.
It is widely used in living sanitary drinking water supply and hot water heating systems in industrial and civil buildings. It is an upgraded product of copper pipes, galvanized steel pipes, and aluminum-plastic pipes.
Product Parameters

Pipe unit model	SJG315		SJG-450		SJG-630		SJG-800		SJG-1200
Pipe range(mm)	90-315		110-450		250-630		400-800		630-1200
Pipe form	A	A B A	A	A B A	A	A B A	A	A B A	A	A B A
Extruder	SJ100	SJ90/75	SJ120	SJ100/75	SJ120	SJ120/90	SJ150	SJ120/100	SJ165	SJ150/120
Production Capacity(kg/h)	200-400	250-450	250-450	300-500	300-500	400-600	600-1000	600-1100	600-1200	800-1300
Total installed power(KW)	200	250	250	300	300	350	400	450	500	600

Detailed Photos
Product Display :
