Product Details
Product Description
Product Description

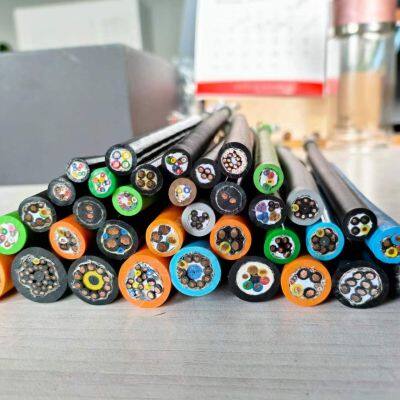

Special cable for drag chain Drag chain cable
Typical Application Scenarios
a. Industrial Automation
Robotics: Used in robotic arms, conveyor systems, and automated guided vehicles (AGVs) where cables must flex repeatedly without fatigue.
Machine Tools: For CNC machines, packaging lines, and assembly stations with high-speed movements.
b. Stage and Entertainment Technology
Lighting Systems: Flexible power cables for stage lights, moving stages, and rotating rigs.
Projection Systems: Used in cinemas and live events where cables must navigate tight spaces and complex paths.
c. Medical and Laboratory Equipment
Imaging Systems: MRI machines, CT scanners, and lab automation setups requiring precise cable routing.
d. Mining and Construction
Heavy machinery, excavators, and drills where cables face extreme vibrations and harsh environmental conditions.
e. Transportation
Forklifts, pallet jacks, and automated guided vehicles in warehouses and logistics centers.
2. Key Characteristics
a. High Flexibility
Constructed with stranded conductors and silicone/polyurethane insulation to enable repeated bending (up to thousands of cycles) without cracking or breaking.
b. Mechanical Durability
Robust outer jackets (e.g., polyvinyl chloride PVC, polyethylene PE, or thermoplastic elastomers TPE) resist abrasion, impacts, and extreme temperatures (-40°C to +90°C).
c. Resistance to Environmental Stressors
Waterproof (IP67/IP69K ratings) and dustproof designs for use in wet, dirty, or chemically exposed environments.
UV resistance for outdoor applications.
d. Tensile Strength
Reinforced with Kevlar knitting to withstand pulling forces and prevent cable detachment during movement.
e. Electrical Performance
Maintains consistent conductivity even under flexing; low capacitance and resistance for signal integrity (critical for data cables).
f. Space Efficiency
Slim profiles and compact designs allow routing through narrow drag chains or confined spaces.
g. Customization Options
Available in various lengths, diameters, conductor configurations (single-phase, multi-core, coaxial), and termination styles (plug/socket, latching connectors).
3. Selection Considerations
To optimize performance, consider the following factors:
Bending Radius: Smaller radii require more flexible cables but may reduce lifespan.
Temperature Range: Choose materials suited for ambient or operational extremes (e.g., silicone for high heat).
Load Requirements: Heavier machinery demands armored cables with higher tensile strength.
Standards Compliance: Adhere to industry certifications (e.g., UL, CE, IEC 60502).
Drag chain cables are indispensable in modern machinery and automation, offering reliable performance in demanding conditions. Proper selection based on application-specific requirements ensures longevity and operational efficiency.
>>
