60 Tons Press Brake 2500mm 63 Tons Hydraulic Press Brake with Bending 3mm

Product Description

60 Tons Press Brake 2500mm 63 Tons Hydraulic Press Brake with Bending 3mm
Product Description

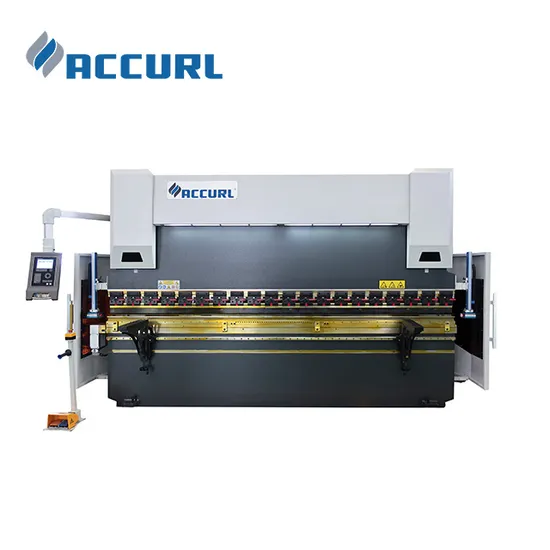

ACCURL CNC PRESS BRAKE SMART-FAB B SERIES
ACCURL design innovations are based on years of experience and have resulted in Smart-Fab series Press Brakes which allow for faster bending, and a better return and back gauge. Accurl Press Brakes will allow you to mass produce precision parts effectively and decrease your cost per part.
Details Images
CNC CONTROL SYSTEM
CNC BACKGAUGE
ACCURL press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning. LAZERSAFE OPTICAL SAFETY GUARDS
Performance without compromise. ACCURLuse LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivi- ty.Designed for use with Lazer Safe's PCSS A Serice, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards(CE Certified Category 4 Safety Controller with integrated). ACCURL QUICK CLAMP SYSTEM
• safe and fast tool change
• substantial improvement in time consumption and related costs
• Secure against tool falling down
• Available in manual, pneumatic and hydraulic models.
• Mounting: Simply from the bottom into the housing, tighten-DONE!
• Easy to mount on your press brake.Modify cation of the press brake is not necessar
STANDARD CONFIGURATION
1. DELEM DA58T 2D graphical operator control
2. YI/Y2 synchro pressbrake
3. X - Axis backgaug , prog ammable in 0.01mm increments.
4. CNC controlled hydraulic Anti deflection table (crowning)
5. Programmable, angle, depth and TDC positioning
6. European style quick release clamping for top tools
7. Full set of top and bottom tooling
8. 2 Front supports
9. CE Safety specifications
OPTIONAL EQUIPMENT
1. DELEM DA52s CNC System
2. DELEM DA66T CNC System
3. Backgauge X-R or X-R-Z1/Z2
4. DSP Optical Safety Guard
5. 1000ram backgauge stroke Technical Specification
Specification for CNC Press Brake

Model(SMART FAB)			B1560	B2580	B32110	B32135	B32175	B40175	B32220
Bending force		KN	600	800	1100	1350	1750	1750	2200
Bending Length		mm	1500	2500	3200	3200	3200	4200	3200
Between Columns		mm	1100	2060	2700	2700	2700	3700	2700
Daylight		mm	405	405	430	430	430	430	430
Slide Stroke		mm	200	200	200	200	200	200	200
Throat Depth		mm	370	400	400	400	400	400	400
Bolster Width		mm	80	80	100	100	100	100	140
Down Speed		mm/min	200	200	180	180	160	160	160
Pressing Speed		mm/min	8	8	10	10	10	10	10
Return Speed		mm/min	180	180	150	150	150	150	140
Back Gauge Stroke		mm	500	600	800	800	800	800	800
Outline Size	L	mm	1825	2825	3500	3550	3500	4500	3500
	W	mm	1650	1650	1650	1650	1650	1650	1730
	H	mm	2300	2350	2650	2700	2700	2750	2900
Weight		kg	4600	5600	8000	9500	10000	12000	13200

The best bending results You can bend longer and deeper parts with standard Smart Fab B Series.
