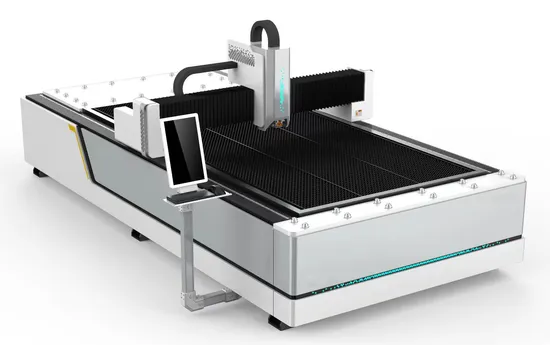

1000W 1500W 2000W 3000W 4000W 6000W CNC Laser Cutting Machine for Stainless / Metal / Carbon Steel Fiber Laser Cutter Pipe / Tube

Product Description

2000W 3000W 4000W 6000W Fiber Laser Cutting / Laser Cutter for Metal / Stainless Steel / Carbon Steel / Copper / Aluminum Steel Fiber Laser Cutting Machine
Product Description>>>

fiber laser cutting machine which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
Technical Parameter>>>

Code name of width	3015
Maximum material width (mm)	3000×1500
X axis travel (mm)	1520
Y axis travel (mm)	3020
Z axis travel (mm)	80
X/Y axis positioning accuracy	±0.05mm/m
X/Y axis repeat positioning accuracy	≤0.04mm
Maximum positioning speed	140m/min
Maximum acceleration	1.2G
Slit width	0.1-0.5mm(Measured value below 3mm thickness)
Minimum setting unit	0.001mm
Floor area of machine tool (mm)	6000×3000
Host volume (mm)	4850*2250*1700
CNC system	CypCut
Monitor	19″LCD
Transfer method	Gear rack dual drive
Maximum load-bearing capacity of worktable (tons)	1
Machine weight (tons)	3
Total installed power consumption (approximately)	Laser power:1000W		17kW
	Laser power:1500W		19.5kW
	Laser power:2000W		22kW
Power requirements	AC380V,50Hz;3P+N+PE
Total power protection level	IP54

Sample Show>>>
Packaging & Shipping>>>
Contact us>>>

---
