| * Support H.265/H.264 video formats |
| * Support audio over coaxial cable(only for TVI cameras) |
| * Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access |
| * 16-channel BNC input |
| * Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 |
| * Long transmission distance over coaxial cable |
| * Support mainstream cameras of ONVIF and RTSP protocols |

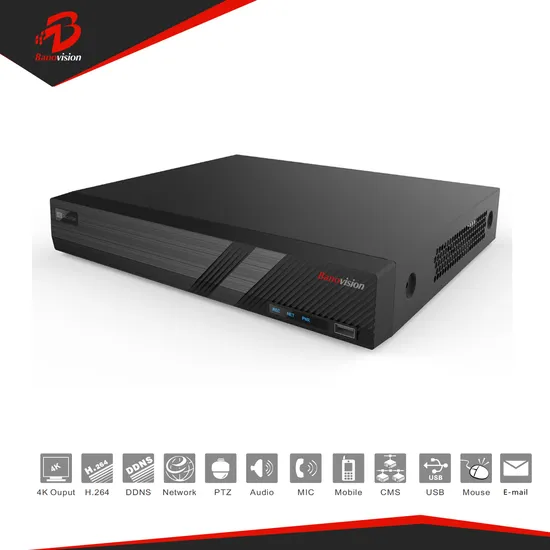

| Model | BA-1D3116-G3 |
| Video/Audio Input |
| Analog Video Input | 16-ch, BNC |
| IP Video Input | 8-ch(up to 16-ch after analog camera conversion) |
| Supported Analog Camera Types | Support AHD input: |
| 5MP@12fps |
| 4MP@15fps |
| 1080P@30fps |
| 720P@30fps |
| Support TVI input: |
| 5MP@12fps |
| 4MP@15fps |
| 1080P@30fps |
| 720P@30fps |
| Support CVI input: |
| 1080P@30fps |
| 720P@30fps |
| Support CVBS input |
| Audio Input | 1-ch, RCA |
| Audio Compression | G.711U |
| Video/Audio Output |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | HD:8-ch |
| SD:16-ch |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 |
| Two-way Audio | 1-ch, RCA |
| Network |
| Incoming Bandwidth | 40Mbps (up to 56Mbps after all analog camera conversion) |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser | IE(IE10/11) for Windows |
| Firefox (version 52.0 and above) for Windows |
| Chrome(version 45 and above) for Windows |
| Edge(version 79 and above) for Windows |
| Recording Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF |
| Recording Frame Rate | Main stream: | Sub stream: |
| 5MP Lite@6fps | D1@6fps |
| 4MP Lite@8fps | D1@8fps |
| 1080P@12fps | D1@12fps |
| 720P@12fps | D1@12fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding |
| Capability | Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 |
| IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
| Hard Disk |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each HDD |
| (The maximum HDD capacity varies with environment temperature) |
| General Alarm |
| General Alarm | Motion detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| General |
| Power Supply | 12V DC |
| Power Consumption: ≤ 10 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) |
