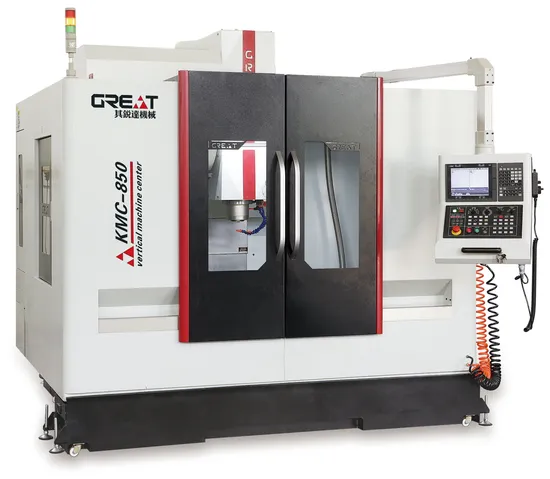

Kmc-850 3 Axis CNC Machine CNC Machining Center

Product Description

KMC-850 3 Axis CNC machine Product Description
1.UsingMeehanite castings to strengthen the internal structure. All of the products have been tempered to ensure high stability with no deformation.
2. The linear rail is imported to provide high-speed and smooth motion performance, which is suitable for high-efficiency processing of products.
3. The three-axis guide rail is using fully enclosed stainless steel protective cover, which has good chip removal protection performance.
4. Using high-power servo motor to drive the feed to ensure high load capacity.
5. Dust-proof electrical box and electrical components are using foreign brands, with good stability and good dust-proof effect.
6. The wire holes are all waterproof, effectively preventing oil and gas from entering the box, ensuring the service life and performance reliability of the original electrical components.
7. Each machine tool is subjected to laser and circular inspection according to international standards to ensure the machining accuracy.
Detailed Photos

Product Parameters

ITEM	TYPE	KMC-650	KMC-850	KMC-855	KMC-857	KMC-1160
Axis travel	LEFT TO RIGHT(X)(mm)	650	800	800	800	1100
	FRONT TO BACK(Y)(mm)	400	500	550	550	600
	UP TO DOWN(Z)(mm)	500	500	550	700	600
WORKTABLE	DIMENSION(mm)	800×400	1000×500	1000×550	1000×550	1200×600
	MAX LOAD (kg)	350	500	600	600	800
	T TYPE(WIDTH×SLOT NO.)	3-18×125	5-18×80	5-18×90	5-18×90	5-18×100
DISTANCE	Spindle center to cloumn(mm)	460	560	613	613	645
	Spindle nose to work bench(mm)	100-600	120-670	150-700	150-850	175-775
SPINDLE	HOLE TAPER	BT40	BT40	BT40	BT40	BT40
	SPEED (rpm/min)	10000	direct connection12000	10000	10000	10000
	MOTOR POWER(kw)	5.5	5.5/7.5	7.5/11	7.5/11	7.5/11
FEED SPEED	X/Y/Z RAPID FEED SPEED(m/min)	48/48/48	48/48/48	36/36/30	36/36/30	36/36/30
	CUTTING FEED SPEED(mm/min)	1-10000	1-10000	1-10000	1-10000	1-10000
Tools	MAGAZINE CAPACITY(pcs)	20	24	24	24	24
	MAX.TOOLS ALLOWABLE WEIGHT(kg)	8	8	8	8	8
	MAX.TOOLS ALLOWABLE LENGTH(mm)	300	300	300	300	300
	TYPE	ARM	ARM	ARM	ARM	ARM
MACHINE	DIMENSION(mm)	2400×2150×2560	2600×2250×2660	2650×2300×2700	2650×2300×2900	3000×2400×2900
	WEIGHT(kg)	4000	4800	5500	5900	6800

Items		Unit	KMC-1270	KMC-1370	KMC-1470	KMC-1570	KMC-1685	KMC-1890	KMC-2090
Axis travel	X axis travel	mm	1250	1300	1450	1500	1650	1800	200
	Y axis travel	mm	700	700	700	700	850	900	900
	Z axis travel	mm	700	700	700	700	850	900	900
Workbench	Workbench area	mm	1400×700	1500×700	1500×700	1600×700	1700×850	2000×900	2000×900
	Maximum load-bearing capacity of worktable	kg	1100	1200	1500	1500	1600	1800	1800
	T-slot Size	/	5-18×125	5-18×110	5-18×125	5-18×150	7-18(5×125/2×100)	7-18×125	7-18×125
Distance	Distance from the end of spindle to workbench	mm	150-850	160-860	150-850	140-840	120-970	95-995	85-985
	Distance from the center of spindle to column guideway	mm	740	760	760	783	960	990	990
Spindle	Taper of spindle bore	/	BT40(or:BT50)	BT40(or:BT50)	BT40(or:BT50)	BT40(or:BT50)	BT40(or:BT50)	BT40(or:BT50)	BT40(or:BT50)
	Spindle speed	rpm	8000(or:12000)	8000(or:12000)	8000(or:12000)	8000(or:12000)	8000(or:12000)	8000(or:12000)	8000(or:12000)
		/min
	Spindle power	KW	D15	11/15	11/15	11/15(or:15/18.5)	11/15(or:15/18.5)	11/15(or:18.5/22)	11/15(or:18.5/22)
Feed	X/Y/Z Rapid feed	m/min	30/30/24	24/24/20	24/24/20	24/24/20	24/24/20	24/24/20	24/24/20
	Cutting feed	mm/min	1-10000	1-10000	1-10000	1-10000	1-10000	1-10000	1-10000
Toolmagazine	Tool magazine capacity	/	24	24	24	24	24	24	24
	Heaviest tool weight	kg	8/15	8/15	8/15	8/15	8/15	8/15	8/15
	Maximum tool length	mm	300	300	300	300	300	300	300
	Tool magazine form	/	Knife arm	Knife arm	Knife arm	Knife arm	Knife arm	Knife arm	Knife arm
	Tool exchange time (tool to tool)	s	1.8/4.2	1.8/4.2	1.8/4.2	1.8/4.2	1.8/4.2	1.8/4.2	1.8/4.2
Machine accuracy	Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
	Repeat positioning accuracy (X/Y/Z)	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Mechanical	Machine weight	kg	7300	7600	10000	11000	15000	16500	17000
	Machine size (including chip removal)	mm	(3300+1100)	(3700+1100)	(3700+1100)	(4060+1100)×	(4300+1100)×	(5000+1100)×	(5200+1100)×
			×2750×2900	×2850×3000	×3050×3100	3050×3300	3400×3500	3400×3500	3400×3500

Company Profile
Ningbo GREAT Machine Tool Co., Ltd. is a modern scientific and technological enterprise specializing in the production of CNC Machinewith brand name Great. Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation.Our main products including: Vertical machining centers, high-speed drilling and tapping machines, CNC engraving and milling machines, gantry machining centers, horizontal machining centers, etc. Complete specifications, diversified configurations can be selected according to your different needs. We offer customized products according to your needs, cost-efficient products processing solution, importing automation, replacing labour by machines, etc.Our products are suitable for producing auto accessories, textile Accessories, digital products, medical instruments, mold manufacturing, aluminum casting and so on.We import inspection equipment from Italy and Britain and conduct complete inspection for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. To ensure the high precise and stable quality of our products. In addition, we provide best after-sales service. Our professional teams maintain close contact with customers and provide technical support at any time if necessary.We adhere to the Diamond quality concep tand keep working on it to provide best products for each customer.

---
