Product Details
Product Description
Product Description

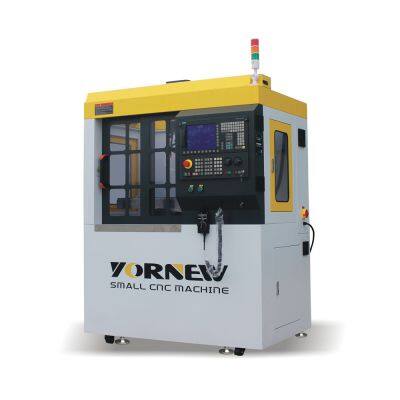

The small YORNEW VMC300 CNC machine offers a small footprint with unprecedented speed. It provides full CNC capabilities in a compact space, ensuring high processing quality. Moreover, this efficiently competent CNC mill comes at an affordable price. Due to its excellent competency and high affordability rates, it is the right match for all CNC cuttings at low unit costs.
Prototyping and Small-Scale Production
A small CNC milling machine, like the YORNE VMC300, is perfect for prototyping and small-scale production projects. Its compact size allows for easy setup in limited spaces while still maintaining high precision and power. With its versatile capabilities, you can quickly iterate designs and produce accurate parts in a cost-effective manner.
Rapid Prototyping: Bring your ideas to life quickly and efficiently
1.Create functional prototypes in a fraction of the time compared to traditional manufacturing methods
2.Test and refine designs before committing to large-scale production
Small Batch Manufacturing: Produce limited quantities of products with ease
Efficiently manufacture small runs of products, reducing waste and costs
Respond quickly to market demands and customer preferences
Technical parameters
|
Positioning accuracy
| 0.02mm
|
Repeatability accuracy
| 0.01mm
|
X axis travel
| 320mm
|
Y axis travel
| 220mm
|
Z axis travel
| 320mm
|
Spindle taper
| ISO 20
|
Automatic tool change system(ATC)
| 10 Tools
|
Pneumatic supply
| 0.6 MPa
|
Tool DIA.range
| 1-13mm
|
Standard Size Collet
| 1-13mm
|
Control system
| SINUMERIK 828D
|
Spindle Power
| 2.2kw
|
Spindle speed
| 100-24000rpm
|
Motor Type
| XYZ axis AC Servo
|
Rapid movement in X /Y/Z Axis
| 1-8000mm/min
|
Feed rate in X/Y/Z Axis
| 1-4000mm/min
|
Power of X/Y/Z Axis
| AC Servo 750W
|
Power of A/C Axis
| AC Servo 200W
|
Transmission
| ball screw
|
guide rail
| High-precision linear guide
|
Table size
| 550*180mm
|
Number of T-slots
| 3
|
Width of T-slot
| 12mm
|
Table structure
| Full cast iron
|
Power
| 380VAC
|
Weight(NW/GW)
| 650/700kg
|
Overall dimension
| 1360*990*1800mm
|
Packing size
| 1400*1050*2000mm
|
>>
