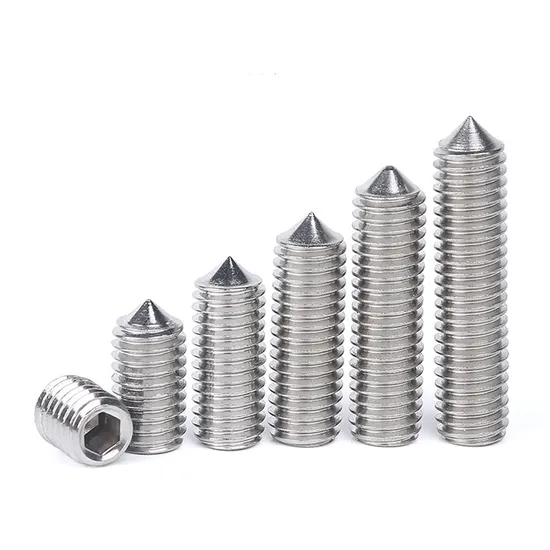

Stainless Steel Hex Socket Head Set Screw DIN914

Product Description

Product Description If the screws do not meet your requirements, please feel free to contact us.
We can produce according to customer's drawings and requirements.

Model	Pitch	s			t
		metric	max	min	min
M1.4	0.3	0.7	0.724	0.711	0.6
M1.6	0.35	0.7	0.724	0.711	0.7
M1.8	0.35	0.7	0.724	0.711	0.8
M2	0.4	0.9	0.902	0.889	0.8
M2.5	0.45	1.3	1.295	1.27	1.2
M3	0.5	1.5	1.545	1.52	1.2
M4	0.7	2	2.045	2.02	1.5
M5	0.8	2.5	2.56	2.52	2
M6	1	3	3.08	3.02	2
M8	1.25	4	4.095	4.02	3
M10	1.5	5	5.095	5.02	4
M12	1.75	6	6.095	6.02	4.5
M14	2	6	6.095	6.02	5.6
M16	2	8	8.115	8.025	6.4
M18	2.5	10	10.115	10.025	7.2
M20	2.5	10	10.115	10.025	8
M22	2.5	12	12.142	12.032	9
M24	3	12	12.142	12.032	10
DIN914 Hexagon Socket Set Screw With Cone Point Unit: MM

Detailed Photos

Inch Size	Metric Size (mm)	Inch Size	Metric Size (mm)	Inch Size	Metric Size (mm)	Inch Size	Metric Size (mm)
6x5/8"	3.5X16	6x2-1/2"	3.5X63	8x3/4"	4.2x19	8x3"	4.2X75
6x3/4"	3.5x19	6x3"	3.5X75		4.2X20		4.2X76
	3.5X20	7x1"	3.9X25	8x1"	4.2X25		4.2X80
6x1"	3.5X25		3.9X30	8x1-1/8"	4.2X28		4.2X90
6x1-1/8"	3.5X28	7x1-1/4"	3.9X32		4.2X30	10x4"	4.8X100
	3.5X30	7x1-3/8"	3.9X35	8x1-1/4"	4.2X32		4.8X110
6x1-1/4"	3.5X32	7x1-1/2"	3.9X38	8x1-3/8"	4.2X35		4.8X115
6x1-3/8"	3.5X35		3.9X40	8x1-1/2"	4.2X38		4.8X120
6x1-1/2"	3.5X38		3.9X42		4.2X40	10x5"	4.8X125
	3.5X40	7x1-3/4"	3.9X45	8x1-3/4"	4.2X45		4.8X127
6x1-5/8"	3.5X41	7x2"	3.9X50	8x2"	4.2X50		4.8X130
	3.5X42		3.9X55		4.2X55		4.8X70
6x1-3/4"	3.5X45		3.9X60	8x2-1/4"	4.2X57	10x3"	4.8X75
6x2"	3.5X50	7x2-1/2"	3.9X63		4.2X60		4.8X80
	3.5X51		3.9X70	8x2-1/2"	4.2X63		4.8X90
6x2-1/8"	3.5x54	7x3"	3.9X75		4.2X65		4.8X95
	3.5X55	8x4"	4.2X100		4.2X70
6x2-1/4"	3.5X57	8x5/8"	4.2X16
	3.5X60

FAQ Q: Are you trading company or manufacturer?
A: We are trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Q: Why choose us?
A: 1) Reply you in 24 working hours.
2) Experienced staffs would like to answer all your questions in time.
3) Customized design is available. ODM&OEM are welcomed.
4) Special discount and protection of sales are provided to our consumers.
5) We can provide free sample, consumer should pay the freight first, and the expensive sample cost will be added in the next order.
6) As an honest exported seller, we always use professional factory, quality quotation, good service, skilled technicians to ensure our products to be finished in high quality and stable feature.

---
