Large Scale Jaw Crusher, PE / Pex Series Jaw Crusher

Product Description

Large Scale Jaw Crusher, PE / Pex Series Jaw Crusher
Jaw Crusher Application
Our Jaw Crusher is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing jaw crusher which is widely applied to crush high hardness, MID hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
Jaw Crusher series have many advantages, such as big reduction ratio, even granularity, simple structure, reliable working condition, convenient repair and economic operation, which are widely used for mine, smelting, building material, road, railway, irrigation works, chemical and materials with compression strength no more than 320 Mpa.

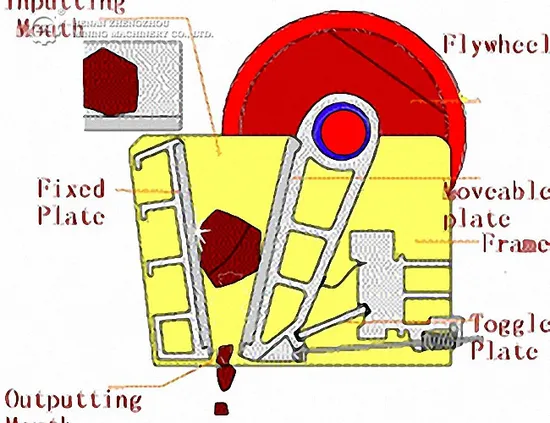

The structure of Jaw Crusher
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs
Jaw Crusher Features and Benefits: 1) High capacity
2) High reliability
3) Adjustable for easy wear parts
4) over-loading protection
5) simple structure and easy to operate
6) Long service time
7) Easy replacement of wear and spare parts
8) Less costly and Easy to install
9) Wide range of choices
10)good after-sale service.
Jaw Crusher Specifications

Mode	Size of Feed Opening ( mm)	Max Feed Size ( mm )	Discharge Range Opening (mm )	Capacity(m 3 /h)	Motor Power(Kw)	Weight(t)
PE-250× 400	250× 400	210	20-60	3-13	15	2.8
PE-400× 600	400× 600	340	40-100	10-35	30	6.5
PE-500× 750	500× 750	425	50-100	25-60	55	10.6
PE-600× 900	600× 900	500	65-180	30-85	55-75	15.5
PE-750× 1060	750× 1060	630	80-180	72-150	90-110	28
PE-800× 1060	800× 1060	680	100-200	85-143	90-110	30
PE-870× 1060	870× 1060	750	170-270	145-235	90-110	30.5
PE-900× 1060	900× 1060	780	200-290	170-250	90-110	31
PE-900× 1200	900× 1200	780	95-255	100-240	110-132	49
PE-1000× 1200	1000× 1200	850	195-280	190-275	110-132	51
PE-1200× 1500	1200× 1500	1020	150-300	250-500	160	100.9

FAQ:
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
4.Service and Payment Terms?
A. We usually accept T/T, L/C;

---
