Corrugated Paper Machine, Kraft Paper Machine Henan Zhengzhou

Product Description

Corrugated Paper/Kraft Paper/Toilet Paper/Testliner Paper/Fluting Paper/ Recycled Paper Making Machine
Paper Machine Buying guide
In order to recommend paper machine and make detailed technical proposal for you as soon possible ,please tell us
the following technical parameters:
(1)what kind of paper do you want to produce?
(2)what kind of raw material you will use?
(3)how many tons do you want to produce per day(24hours)?
(4)what is the output paper width of jumbo roll?--mm;
(5)What is the output paper weight(thickness)?--gsm.
Thanks for your cooperation!

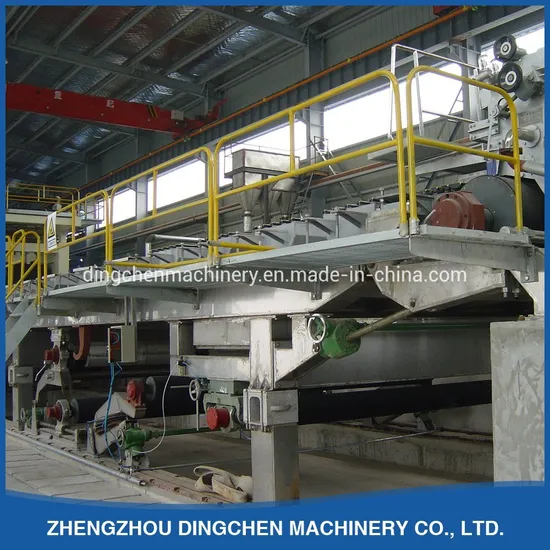

Kraft Paper Making Machine Technical parameters:

Main products	Fluting paper Corrugated Paper Testliner Paper Kraft Paper Duplex Board Paper
Test liner Ration	90-150g / m2
Capacity	200t/d
Net paper width	3800mm
Gross paper width	3860mm
Working speed	250-380 m / min
Design speed	400 m / min
Gauge	4900 mm
Roll of dynamic balance	G2.5
Cylinder of dynamic balance	G4
Batch-off roll of dynamic balance	G1.6
Drive mode	AC motor variable frequency speed regulation segment drive
Paper machine layout form	Single layer layout
Pattern	Left hand machine
Banner moisture difference	≤±1%
Banner quantitative difference	≤±1.5%

Dryness of Craft Paper

Paper dryness out of wire part	20-22% (± 1%)
Paper dryness out of press section	44-46% (± 1%)
Before sizing	92%
Paper roll machine	92%
Lateral shrinkage	About 3.5%

Fresh water, clarified water

Requirements	clear, colorless, sand removal
Water pressure	3.0MPa, 2.0MPa, 0.5MPa
PH value	6-8

Power Supply

AC voltage	high pressure,380/220V±5%
Control point pressure	220/24V
Frequency	50HZ±1%

rinting Paper/A4 Paper/Wrinting Paper Making Machine

Main products	Printing Paper/A4 Paper/Wrinting Paper/Copy Paper
Paper weight	60-90g / m2
Capacity	5-100t/d
Net paper width	1092-3200mm

Paper Machine Raw Material
Paper is sorted into different grades such as waste paper, old carton box, reed, wheat straw, bamboo, bagasse, newspapers, duplex, white cutting, boards, core pipes, etc suitable for manufacturing different grades of Fluting paper Corrugated Paper Testliner Paper Kraft Paper Duplex Board Paper.
Company Information Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
Packaging & Shipping
Our Services

FAQ
Other machine 1.Toilet paper machine2.Cultural paper machine3.Kraft paper machine
4.Paper core tube machine
5.Toilet paper converting/rewinding machine

---
