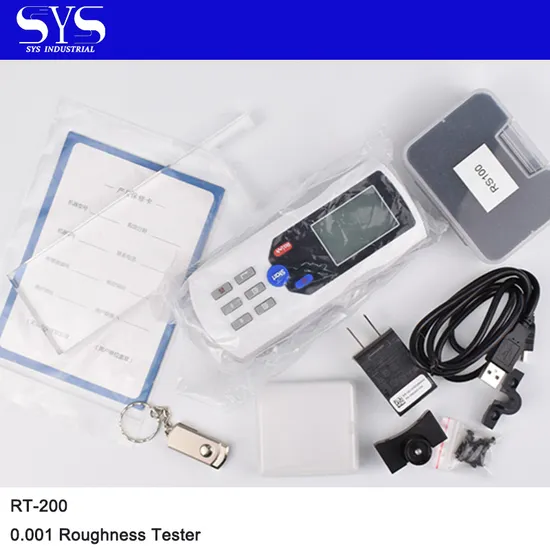

Roughness Tester Rt-200 Portable Type 0.001mm

Product Description

20 Testing Parameters	Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;
Measuring Range	Ra: 0.005~16.000μm Rz: 0.02~160.00μm
Sample Length	0.25, 0.80, 2.50mm
Evaluation Length	(1~5)L
Maximum Drive Stroke	17.5mm/0.7inch
Indication Accuracy	0.001μm
Indication Error	≤±10%
Variability	<6%
Data Storage	100 groups
Power	Rechargeable Li-battery
Relative Humidity	<90%
Working Temperature	-20°C~40°C
Size	158x63.5x46mm
Weight of Host	0.3kg

*Full metal shell design, sturdy, compact, portable, high reliability.
*Visual waveform display;
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours;
*Real-time clock settings and display, convenient data recording and storage;
*With automatic dormancy, automatic shutdown and power saving function;
*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
*With PC software, can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
*Support OEM Service, High price performance.

---
