High Pressure China High Quality Hydraulic Water Hose Assembly Pressure Washer Hose

Product Description

Product Description
High Pressure China High Quality Hydraulic Water Hose Assembly Pressure Washer Hose
Application: Suitable for hydraulic fluids, such as hydraulic oil, fuel oil, lubricants, emulsion, glycol and water.
Tube: Oil synthetic rubber
Reinforcement: Wire braided or wire spiral
Cover: CPE blend cover rubber with Oil and weather resistant synthetic rubber
Temperature: -40°C to 100°C(wire braid) -40°C to 120°C(wire spiral)
Color: Black or custom

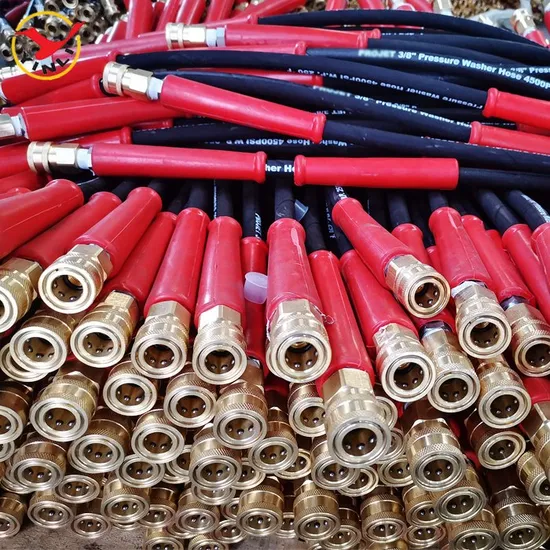

Kachi joint & protector washer hose

Quick coupling & protector washer hose

BSP fittings washer hose

I wire hydraulic hose

2 wire hydraulic hose

4 wire hydraulic hose

Smooth finishe hydraulic hose

Colorful finishe hydraulic hose

Embossed(dig) brand

Hydraulic rubber hose assembly

Rubber hydraulic hose application

Hydraulic hose skiving

Production flow
QC System
Control the qualtiy from the beginning to the end
1.More than 20 years experienced material egineer
2.High quality rubber and steel wire material
3.High Advanced rubber refining center
We keep data test and record in every step to control the dataOnly well packaged goods are allowed to be put into warehouse

Part Number		Size			ID		Wire Dimention	OD	W.P.	Weight	Length
		mm	inch	SAE	min	max	mm	mm	MPa	kg/m	m/roll
100R1AT-04		6.3	1/4	-4	6.2	7.0	11	13.5	20	0.25	UP TO 100
100R1AT-05		8	5/16	-5	7.7	8.5	12.6	15	17.5	0.3	UP TO 100
100R1AT-06		10	3/8	-6	9.3	10.1	15	17.5	16	0.35	UP TO 100
100R1AT-08		12.5	1/2	-8	12.3	13.5	18	20.5	14	0.45	UP TO 100
100R1AT-10		16	5/8	-10	15.5	16.7	21	23	12	0.5	UP TO 100
100R1AT-12		19	3/4	-12	18.6	19.8	25	27.5	10	0.65	UP TO 100
100R1AT-16		25	1	-16	25.0	26.4	31	32.8	8	0.8	UP TO 100
100R1AT-20		31.5	1.1/4	-20	31.4	33.0	38.6	41.3	6	1.1	20/40/60
100R1AT-24		38	1.1/2	-24	37.7	39.3	45	46.3	5	1.3	20/40/60
100R1AT-32		51	2	-32	50.4	52.0	57.8	60	4	1.8	20/40/60

Part Number		Size			ID		Wire Dimention	OD	W.P.	Weight	Length
		mm	inch	SAE	min	max	mm	mm	MPa	kg/m	m/roll
100R2AT-04		6.3	1/4	-4	6.2	7.0	12.7	14.7	60	0.4	UP TO 100
100R2AT-05		8	5/16	-5	7.7	8.5	14.8	16.8	50	0.45	UP TO 100
100R2AT-06		10	3/8	-6	9.3	10.1	17	18.5	53	0.5	UP TO 100
100R2AT-08		12.5	1/2	-8	12.3	13.5	20	22	42	0.65	UP TO 100
100R2AT-10		16	5/8	-10	15.5	16.7	23	23.1	40	0.75	UP TO 100
100R2AT-12		19	3/4	-12	18.6	19.8	27	27.3	34	0.9	UP TO 100
100R2AT-16		25	1	-16	25.0	26.4	32.8	32.8	21	1.25	UP TO 100
100R2AT-20		31.5	1.1/4	-20	31.4	33.0	40.9	42.4	16	1.6	20/40/60
100R2AT-24		38	1.1/2	-24	37.7	39.3	47	46.3	15	1.8	20/40/60
100R2AT-32		51	2	-32	50.4	52.0	59.8	62.8	12	2.45	20/40/60

Part Number		Size			ID		Wire Dimention	OD	W.P.	Weight	Length
		mm	inch	SAE	min	max	mm	mm	MPa	kg/m	m/roll
4SP-06		10	3/8	-6	9.3	10.1	18	20.5	70	0.75	UP TO 100
4SP-08		12.5	1/2	-8	12.3	13.5	22	23.5	60	0.9	UP TO 100
4SP-10		16	5/8	-10	15.5	16.7	25	27.5	55	1.6	UP TO 100
4SP-12		19	3/4	-12	18.6	19.8	29	31.5	46	1.7	UP TO 100
4SP-16		25	1	-16	25.0	26.4	35.5	37.5	40	2.05	UP TO 100
4SP-20		31.5	1.1/4	-20	31.4	33.0	44	45	40	2.7	20/40/60
4SP-24		38	1.1/2	-24	37.7	39.3	50.3	53	35	3.4	20/40/60
4SP-32		51	2	-32	50.4	52.0	63.7	66.5	35	4.6	20/40/60

Relative products
Steel wire braided hydraulic hose(one or two steel wire braided )
SAE 100R1AT/DIN EN853 1SN/DIN-EN857 1SC/SAE 100R1A/DIN EN853 1ST
SAE 100R2AT/DIN EN853 2SN/DIN-EN857 2SC/SAE 100R1A/DIN EN853 2ST
SAE 100R5/SAE 100R16/SAE 100R17/Pressure washer hose
Multi spiral hydraulic hose (four or six high tensile steel wire spiral
DIN EN856 4SP/SAE 100R9/SAE 100R12/DIN EN856 4SH/SAE 100R13/SAE 100R15
Textile Braid Hydraulic Hose
SAE 100R3/SAE 100R6
Thermoplastic hydraulic hose
SAE 100R7/SAE 100R8
Other hydraulic hose
SAE 100R4/suction oil hose
SAE 100R14/PTFE HOSE
Industrial rubber hose
steam hose
Dredging hose
Air/Water hose
Fuel/oil hose
Water suction/delivery hose
Sandblast hoseComposite hose
Cement rubber hose
Concrete rubber hose
Chemical rubber hose
Food hose
Flexible stainless steel metal hose
Company Profile
FAQ
Q1. Are you factory?
A. Yes, we are a factory since 1997, which have more than 20 years experience on rubber hose production.
Q2. Do you produce embossed marking ?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, it's available except famous brand which are not allowed.
Q4. What is the biggest size you can produce?
A.Hydraulic hose inner diameter size up to 304mm, industrial rubber hose inner diameter size up to 1300mm.
Q5. Is colorful hose available?
A. Yes, we can produce the hose color buy your requirements.
Q5.What is your payment terms?
A. 30% deposit, 70% before delivery.
