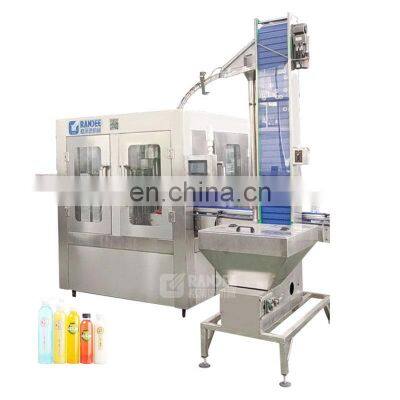

Automatic small plastic bottle hot juice filling machine / production line / bottling plant Product DescriptionMachine description :RCGF18-18-6 monoblock is the combination of 18 heads asepsis water washer, 18 heads hot filler and 6 heads screw capper. It’s mainly used to rinse, fill and screw for fruit juice production continuously. This hot fruit juice filing equipment uses bottle neck holding transmission technology to realize automatic bottle rinsing, pulp rinsing, pulp filling, juice filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique and equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.Characteristic :1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.. 3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. 4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. 5. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON. Machine picture: What Grandee Machinery Can Do More For You ? Main technical data: ModelWashing head no.Filling head no.Capping head no.Production capacity(500ml)Overall size(mm)Weight(kg)Power of main motor(kw)8-8-38831500-20002050*1450*210020001.814-12-5141253000-40002400*1760*235025002.016-12-6161265000-60002300*1600*240028002.218-18-6181867000-80002650*1900*240030003.524-24-8242488000-100002900*2100*240035004.532-32-1032321012500-150003100*2100*265043005.540-40-1040401015000-180004350*2880*320060005.550-50-1250501220000-230004850*3800*320075007.5Detailed ImagesWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor.The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againHot Filling Valve304/316 Stainless steel high precision filling nozzleFilling volume adjustable in fine rank, same liquid level after fillingAll 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean304/316 stainless steel filling pumpEfficient spray nozzle rinse thoroughly and save water for flushingCapping PartRotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam. Air Conveyor.Air conveyor is fixed on the floor, with fan installed on the top.Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.All are made of stainless steel SUS 304 /316.Rack made by high quality carbon steel welded.Flat ConveyorEnergy saving. High efficient. Adapt to customer factory layoutSpecial lubrication system, keep products clean, health, safetyExtended service lifeElectric eyes design keep whole line running safety and quicklyOverload protection mechanism to effectively ensure the safety of the machine Related productsCompany information Our exhibition Project casesFAQ Q1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
