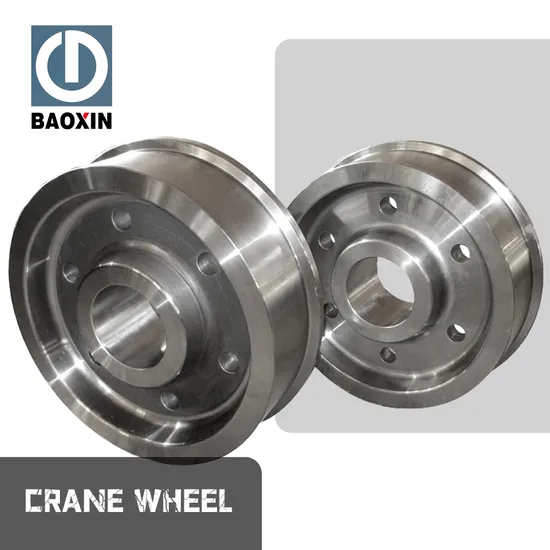

Custom Forging High-Strength Alloy ANSI Gantry Forged Gantry Crane Wheels (OD820) for Lifting Equipment

Product Description

Custom Forging High-Strength Alloy ANSI Gantry Forged Crane Wheel (OD820) for Port Lifting Machine
Product Description
Custom Made ANSI Gantry Crane Wheels :
1. High-strength wheel used for port machine.
2. Material: Forged 42CrMo4, 60, 65Mn, SSW-Q1R and so on, or according client request.
3. Wheel Tread surface and flange hardness: 300-380HB and handness deep more than 15mm
4. Wheel material UT test before process and tread surface MT test after heat treatment.
5. Welcome client drawing.


Product Parameters

Basic Specification										Basic Specification
D	D1	B	B1	d	B2 max	C min	b min	X max	Y max	S	d1	d2	D2	D3	R	r
mm								μm		mm
250	280	90	90	70	40	5	20	50		25	120	30	210	165	10	5
315	355	110	110	110	60	5	20	60		30	175	30	265	220
		155		120	80	12.5	25				190		255
400	440	125	140	120	70	7.5	20			35	190	35	340	265
	450	155		130	80	12.5	25				205		330
500	540	130	140	130	70	10	20			40	205	40	430	315	20
														320
	550	175		140	100	12.5	25				220			325
630	680	145	160	160	70	12.5	25	80		45	255	50	560	405
		175			100
		210	190	180	120	15	30			60	285		530
710	760	155	180	170	80	12.5	25			50	270	55	630	450	25	6
		195			120
		210	210	190		15	30			65	300		600
800	850	155	180	180	80	12.5	25			50	285	60	710	500
		195			120
		210	210	200		15	30			70	320		680
900	950	155	190	190	80	12.5	25	100		55	300	65	800	550	30
		195			120
		210	210	230		15	30			75	365		770	565

Detailed Photos

Other Products

Customer Visiting

Certifications

Packaging & Shipping
FAQ
FAQ:
Q: What information should I provide if I want to order the products?
1) Product information: Quantity, specification
2) Delivery time required.
3) Shipping information: Company name, address, phone number, destination seaport/air port.
4) Forwarder's contact details if there is any in China.

Q: How about your payment terms?
A: 30% -50%deposit, with the balance before delivery, we accept T/T and L/C at sight.
Q: Can I use our own logo?
A: Yes, we can produce by using your own logo if you need.

Q: How about sample & MOQ policy?
A: Welcome sample order. MOQ can be 1 set.

Q: What is your lead time for your goods?
A: Normally 30 days after confirmed order.

---
